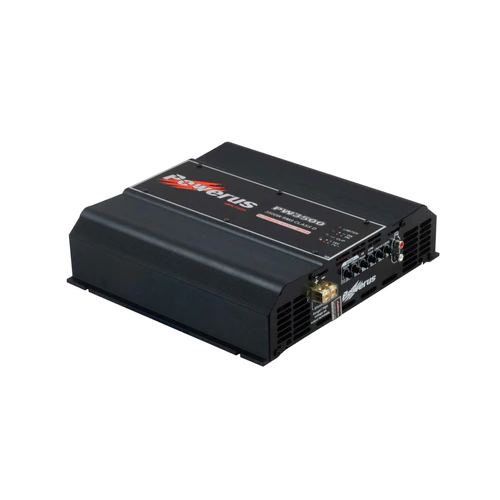

Powerus PW2500 Amplifier

Powerus PW2500 Amplifier

$602.00
$680.00 $602.00
Sale Sold out
Shipping calculated at checkout.
Impedance

Introducing the Powerus PW2500 amplifier. Setting a new standard in consumer technology from Brazil. These amplifiers boast versatile impedance options and feature advanced protection circuits to safeguard against installation errors. Built with precision and durability, the Powerus PW2500 ensures high-quality construction with robust components, delivering a substantial declared power output with minimal distortion (0.1% THD) at a tested RMS wattage of 40Hz. Additionally, Powerus amplifiers come equipped with exclusive functions like LIMITER for an enhanced audio experience. Elevate your sound system with the cutting-edge technology of Powerus. Now available at Intricate Audio!

TECHNICAL SPECIFICATIONS

Supply Voltage / Power Supply 7Vdc ~ 16V dc
Resting Consumption / Consumption at Rest 1.35A
Musical Consumption / Music Consumption 120A
Cons. Max. Sinusoidal Signal 40Hz / Max. Consump. in Sinusoidal Signal 40Hz 318A
Efficiency 75%
Input Impedance 22K Ohms
Input Sensitivity 0.25V ~ 6V
Total Harmonic Distortion / THD 0.1%
SNR (Signal-to-Noise Ratio) > 90dB
Damping Factor 40Hz (12.6V 2 Ω) > 1000
Frequency Response 5Hz ~ 45KHz (-3dB)
Low Pass Crossover 80Hz ~ 45KHz
High Pass Crossover 5Hz ~ 200Hz
Boost Gain 0dB ~ 18dB
Variable Boost Frequency 28Hz ~ 400Hz
Variable Threshold Limiter Exclusive
Dimensions (AxHxL) mm 70x280x260
Weight 3.9Kg



POWER OUTPUT

Amplifier Impedances 0.5Ω 1Ω 2Ω 4Ω
Power RMS @ 12.6V
0.5Ω 3010W 2100W 1470W 1030W
1Ω - 3010W 2100W 1470W
2Ω - - 3010W 2100W
4Ω - - - 3010W
Power RMS @ 14.4V
0.5Ω 3930W 2750W 1920W 1430W
1Ω - 3930W 2750W 1920W
2Ω - - 3930W 2750W
4Ω - - - 3930W
