SoundQubed Q1-8000 18v Q-Series Mono Amplifier
SoundQubed Q1-8000 18v Q-Series Mono Amplifier
Serious Bass for Serious Systems
You asked for more power. Here it is in an 8000W monoblock!
If you need dominating bass, uncompromising power, and the ability to crush it in the lanes, this is the car audio amplifier for you.
The Q1-8000 is a BEAST! It’s for competitors with extreme builds who are trying to get the most out of their car stereo system and daily drivers who need enough bass to announce their arrival from half a mile away.
Competition Ready 8000W Monoblock Amp

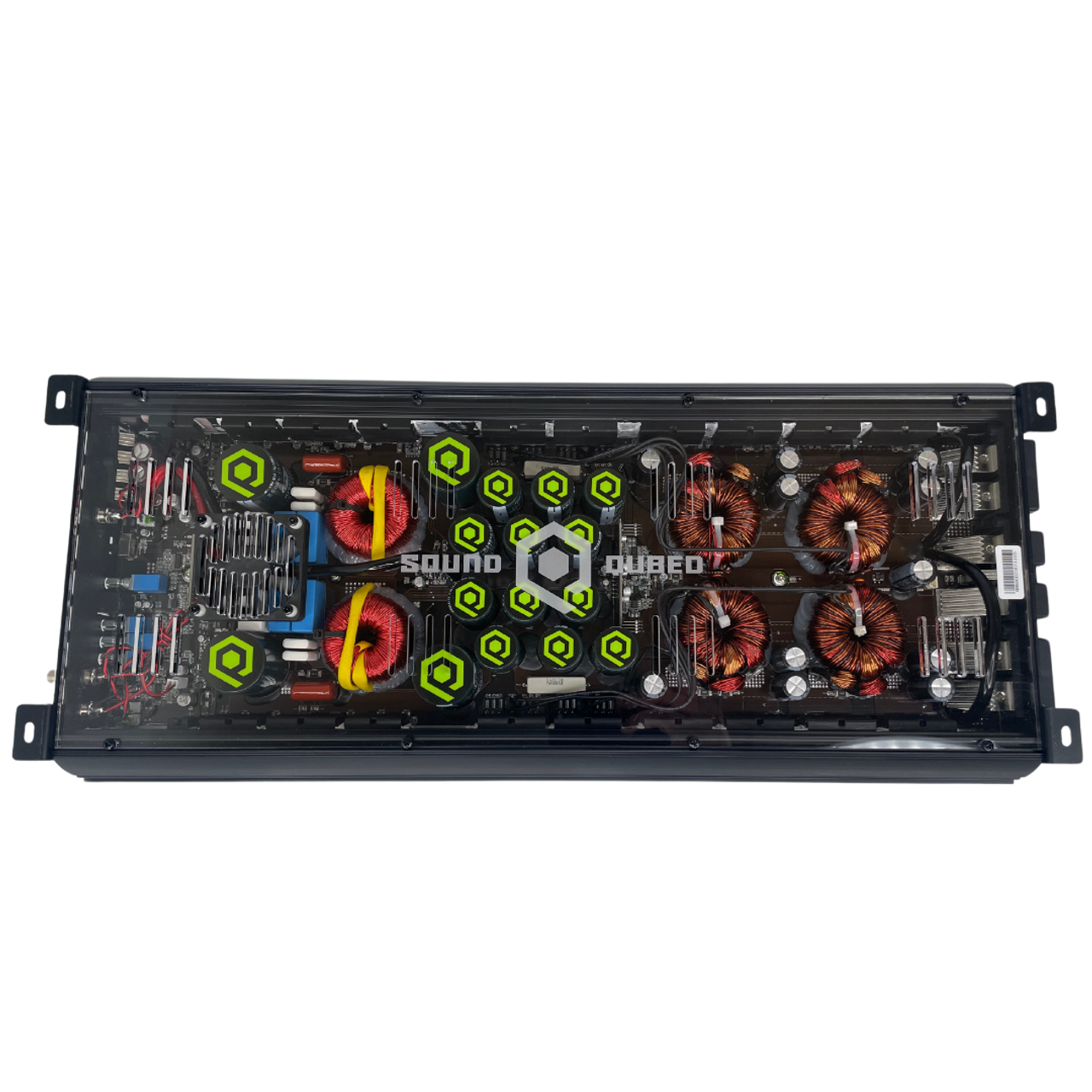

The Korean Half-Bridge board in this 8000W monoblock is the same quality you’ve come to expect from the Q-Series Amplifiers. The amp features robust, workhorse components built to take abuse and keep on going.
Need to push more than one subwoofer? Run an 8K to each subwoofer or strap two together for a colossal 16,000-watt load at 2 Ohms.
Required: Upgraded Electrical Charging System
You will need to have The Big Three wiring upgrade, at least one 250 Amp high-output alternator, and at least one secondary battery with 500 Ah of AGM or 80 Ah of Lithium to run this 8000W monoblock.
POWER | |
---|---|
RMS Power @ 4 ohm (14.4V) | 2800W |
RMS Power @ 2 ohm (14.4V) | 4700W |
RMS Power @ 1 ohm (14.4V) | 8000W |
RMS Power @ 1 ohm (16V) | 8800W |
RMS Power @ 1 ohm (18V) | 10000W |
AUDIO | |
Frequency Response | 10Hz-250Hz |
Signal to Noise Ratio | 90dB |
Efficiency @ 4ohm | 96% |
Damping Factor | 336 |
Input Impedance | 22Kohms |
Total Harmonic Distortion (THD) | 1% |
Low Level Input Range | 0.15V-5V |
Selectable X-Over | Fixed LPF |
X-Over Filter Range | 20Hz-200Hz |
Bass Boost Range | 0-6dB |
Bass Boost Frequency | 45Hz |
Infrasonic Filter | 10Hz-50Hz |
FEATURES | |
Amplifier Class | Digital |
Amplifier Type | Monoblock Subwoofer |
Number of Channels | 1 |
Minimum Impedance | 1 ohm |
Led Indicator | Power / Protect / Clip |

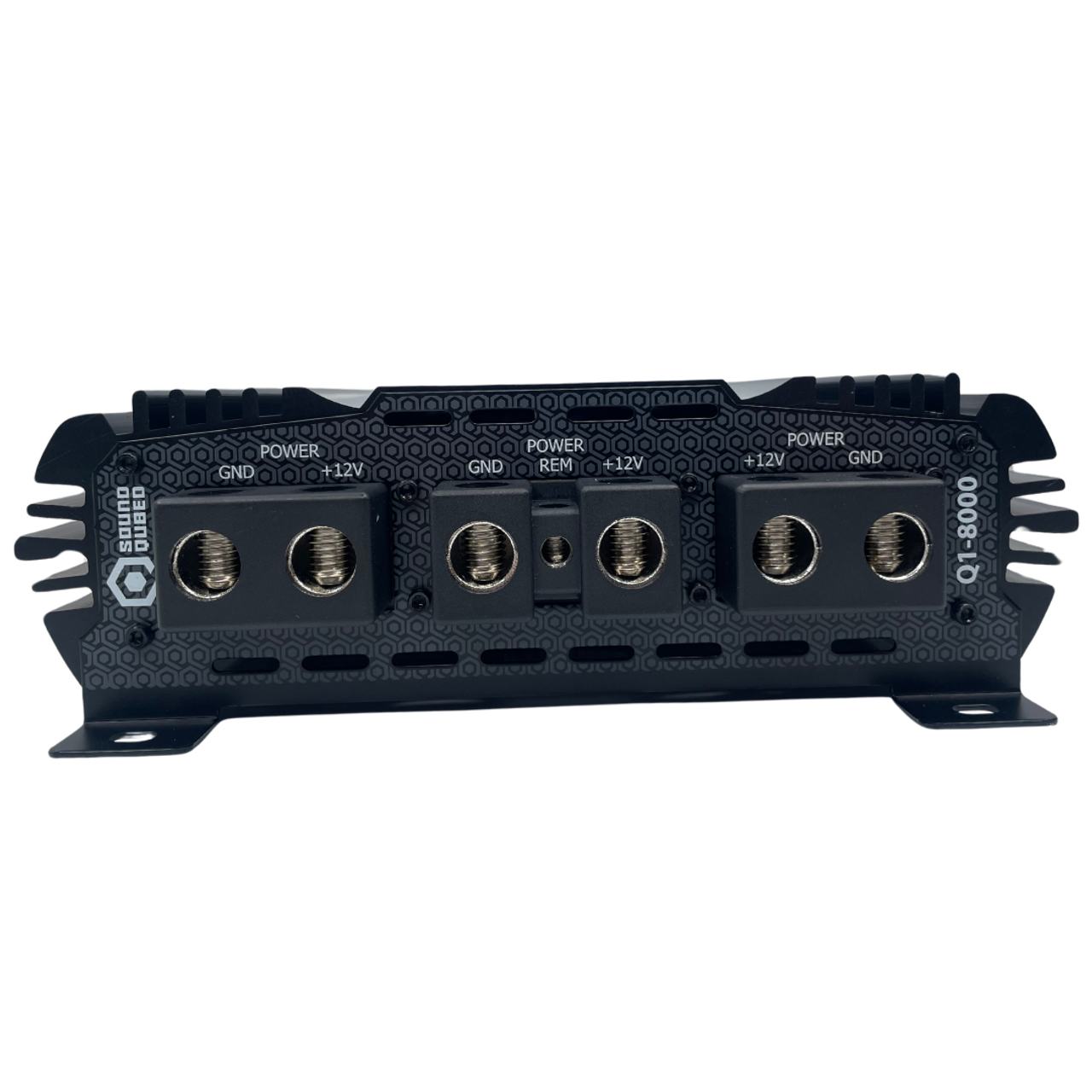

Power Input Terminal Size | 3 x 1/0GA |
Fuse Size (Recommended) | 700A |
Remote Level Control | Yes (Metal Case) |
Cooling Fan | Yes |
Thermal Protection | Yes |
Over-Load Protection | Yes |
DC Output Protection | Yes |
Short Circuit Output Protection | Yes |
Voltage Input Protection | Yes |
Clipping Protection | Yes |
Body Color | Black |
EXTRA FEATURES | |
Very High Efficiency Digital Circuit Design | Yes |
Tiffany Style RCA | Yes |
Quality Control Verification Using Audio Precision Instruments | Yes |
Heavy Duty Printed Circuit Board | Yes |
Surface Mount Component Technology | Yes |
Strappable Amplifier | Yes |
MEASUREMENT | |
Overall Length | 22.3" / 567mm |
Overall Width | 9.4" / 241mm |
Overall Height | 3" / 76mm |
Heatsink Length | 20.8" / 530mm |
