SoundQubed Q4-3200 4-Channel Amplifier
SoundQubed Q4-3200 4-Channel Amplifier
Couldn't load pickup availability

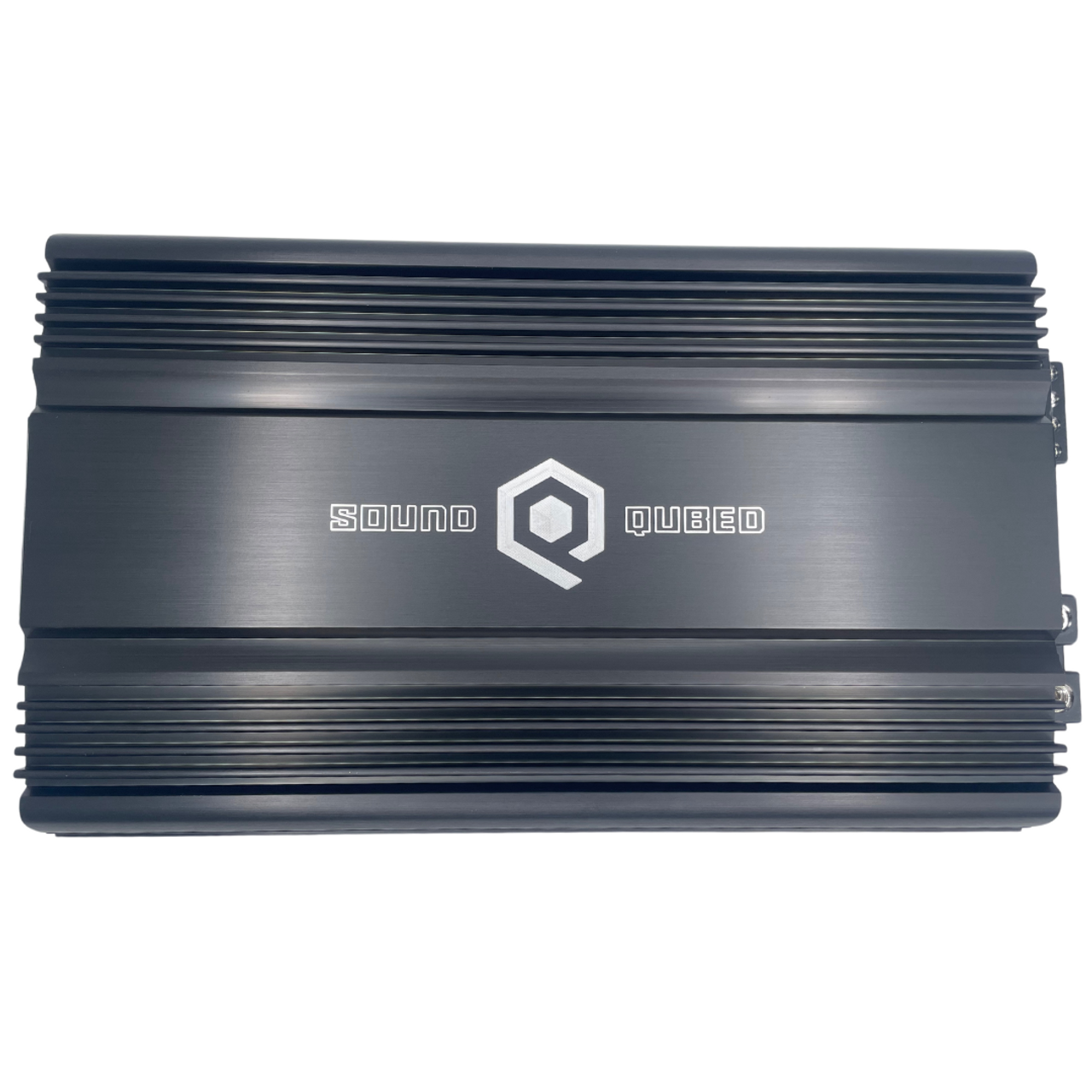

Introducing the Q4-3200, a powerhouse in high-speed Class A/B-like processing, with a Class D footprint. Imagine if Class A/B and Class D had a baby - this is it! With its standard plexi backing and matching oversized heatsink, the Q4-3200 boasts a sleek and stylish design that complements any audio setup.

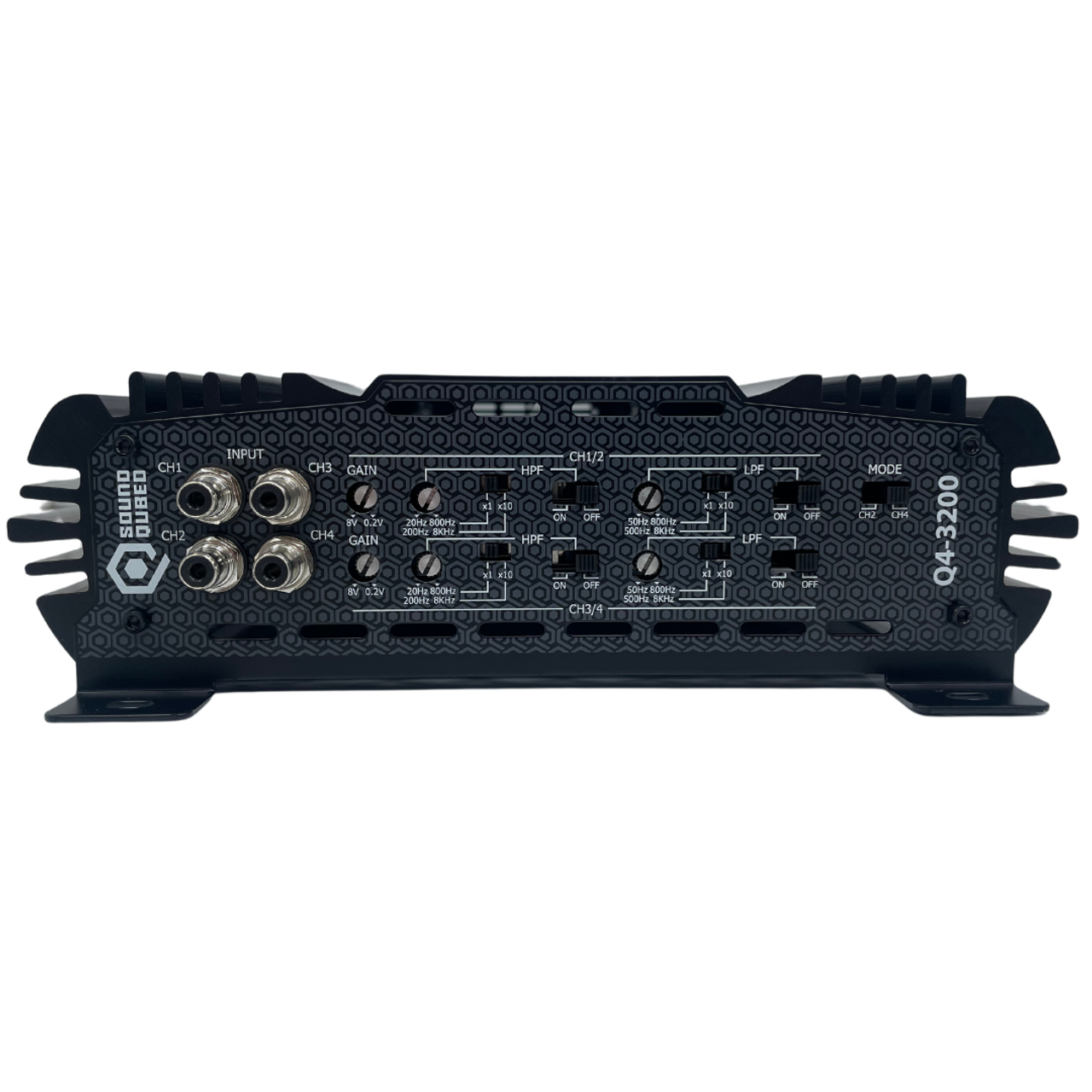

Equipped with fully bandpassable crossovers, this amplifier eliminates the requirement for a DSP, making it a convenient and hassle-free choice. The clip indicator ensures that you know when you are pushing your audio system beyond its limits, providing reliable and efficient performance.
Featuring Tiffany Style RCAs, the Q4-3200 not only delivers exceptional audio quality but also adds a touch of elegance to your setup. The inclusion of crossover multipliers allows for precise control over the top and bottom sides of the slope, giving you the flexibility to fine-tune your setup.
With the option of two or four-channel input selection, this amplifier adapts to your specific audio needs. Its impressive 10 Hz - 20 kHz frequency response ensures that every detail of your music is reproduced with utmost clarity and accuracy.

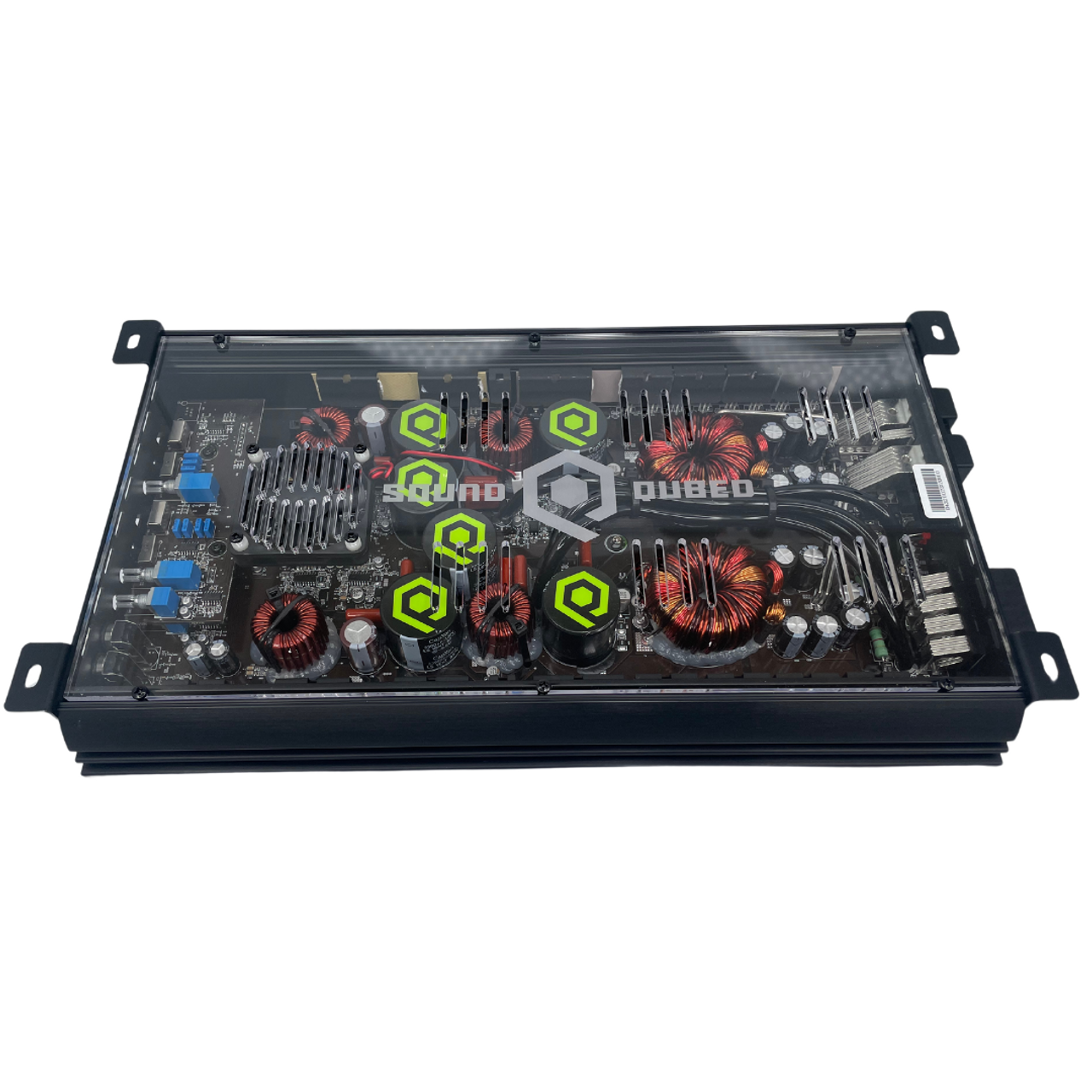

Utilizing surface component mount technology, the Q4-3200 guarantees reliable and durable performance, even in the most demanding conditions. It is bridgable at 4 ohms stable, providing you with the flexibility to connect multiple speakers without compromising on sound quality.
The Q4-3200 also shares its cutting-edge technology with its baby brother, the Q4-2000, ensuring that you get the same exceptional performance across both models. Whether you're a professional audio engineer or a passionate basshead, the Q4-3200 is the perfect choice for those who demand nothing but the best in audio amplification. This amplifier is a part of our flagship line, made in Korea.
Experience the power, precision, and versatility of the Q4-3200. Elevate your audio experience to new heights with this exceptional amplifier!
| POWER | |
|---|---|
| RMS Power @ 4 ohm (14.4V) | 4 x 520W |
| RMS Power @ 2 ohm (14.4V) | 4 x 800W |
| RMS Power @ 4 ohm Bridge (14.4V) | 2 x 1600W |
| AUDIO | |
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio | 95dB |
| Efficiency @ 4ohm | 87% |
| Damping Factor | 145 |
| Input Impedance | 22Kohms |
| Total Harmonic Distortion (THD) | 1% |
| Low Level Input Range | 0.2V-8V |
| Selectable X-Over | Band-Pass (X1-X10) |
| X-Over Filter Range | HPF: 20Hz-8KHz / LPF: 50Hz-8KHz |
| FEATURES | |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full-Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm Stereo / 4 Ohm Bridge |
| Led Indicator | Power / Protect / Clip |
| Power Input Terminal Size | 0GA |
| Fuse Size (Recommended) | 300A |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color | Black |
| EXTRA FEATURES | |
| X-Over Frequency Multiplier | Yes |
| Input Mode Selectable | Yes (2Ch/4Ch) |
| Very High Efficiency Digital Circuit Design | Yes |
| Tiffany Style RCA | Yes |
| Quality Control Verification Using Audio Precision Instruments | Yes |
| Heavy Duty Printed Circuit Board | Yes |
| Surface Mount Component Technology | Yes |
| MEASUREMENT | |
| Overall Length | 16.4" / 417mm |
| Overall Width | 9.4" / 241mm |
| Overall Height | 2.8" / 73mm |
| Heatsink Length | 15" / 380mm |
