Taramps

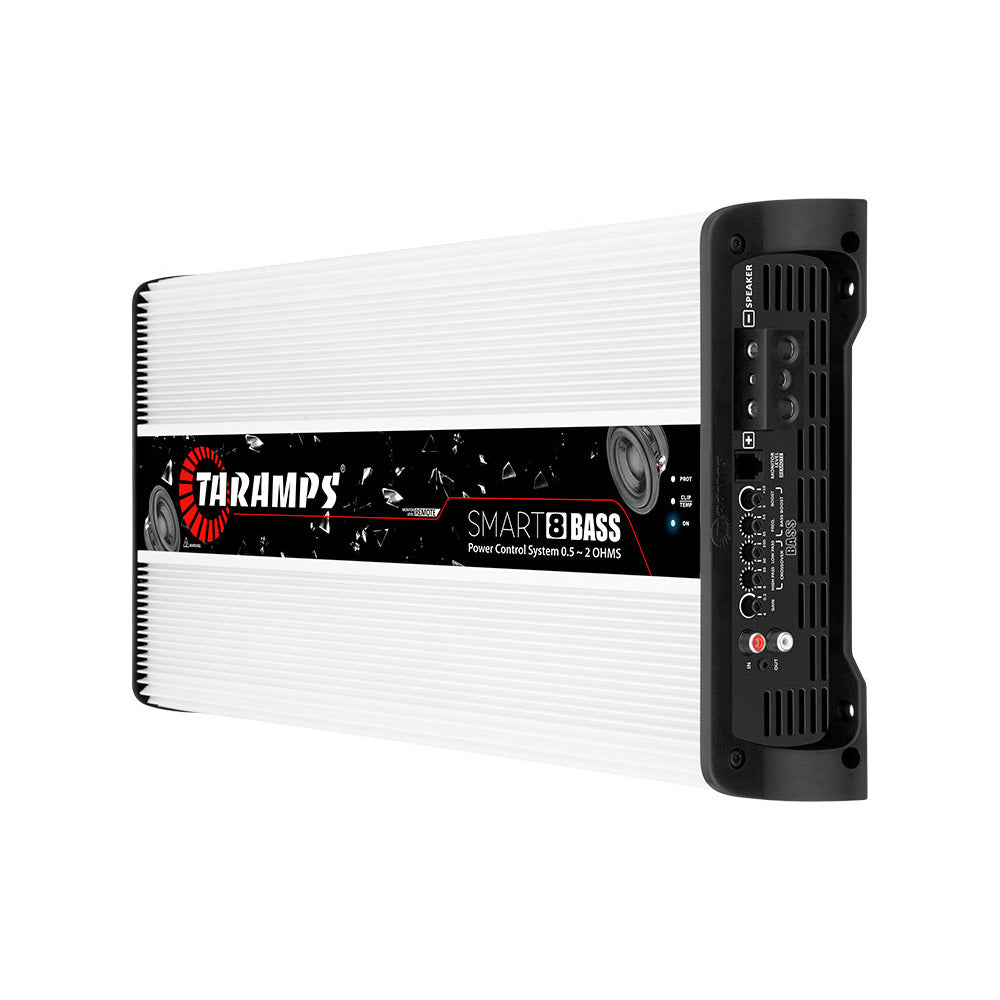

Taramps Smart 8 BASS Amplifier

Taramps Smart 8 BASS Amplifier

Regular price $987.00
Regular price $1,015.00 Sale price $987.00
Sale Sold out
Shipping calculated at checkout.

PRODUCT DESCRIPTION

The Smart 8 BASS amplifier is another innovation by Taramps built for car audio systems. The exclusive Power Control System technology, now specific for subwoofers, ensures even more quality at low frequencies. The improved protection circuitry delivers more security by monitoring the whole amplifier operation. It's a multi-impedance, single-channel amplifier that delivers 5000W RMS in any impedance between 0.5 and 2 ohms. It has a robust power input allowing cables up to 2/0 AWG (70mm²) x 2 and output for CLIP monitor. Feel the bass in an unforgettable way. Available at Intricate Audio!

TECHNICAL INFORMATION

OPERATION CLASS D
NUMBER OF CHANNELS 01
MAXIMUM POWER Output Power @14.4VDC*
0.5 OHM: 8000W RMS
1 OHM: 8000W RMS
2 OHMS: 8000W RMS
4 OHMS: 4800W RMS
INPUT SENSITIVITY 4V ~0.2V
SIGNAL-TO-NOISE RATIO (SNR) >90dB
FREQUENCY RESPONSE 8Hz ~ 200Hz (-3dB)
CROSSOVER HIGH PASS (HPF) 8Hz ~ 30Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF) 60Hz ~ 200Hz (-12dB/8ª) Variable
BASS BOOST Freq.: 35Hz ~ 55Hz
Boost: 0 ~ +10dB
EFFICIENCY 78% @ 0.5 Ohm | 82% @ 1 Ohm | 86% @ 2 Ohms
INPUT IMPEDANCE 10K Ohms
PROTECTION SYSTEM Output short-circuit, low/high supply voltage and
Thermal protection
MINIMUM SUPPLY VOLTAGE 9VDC
MAXIMUM SUPPLY VOLTAGE 17VDC
CONSUMPTION AT REST 5.0A
MAXIMUM MUSIC CONSUMPTION 356A @ 0.5 Ohm | 339A @ 1 Ohm | 323A @ 2 Ohms
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 712A @ 0.5 Ohm | 678A @ 1 Ohm | 646A @ 2 Ohms
DIMENSIONS (WXHXD) 9.37" x 2.80" x 20.16" (238 x 71 x 512mm)
WEIGHT 16.39lb (7,45Kg)
