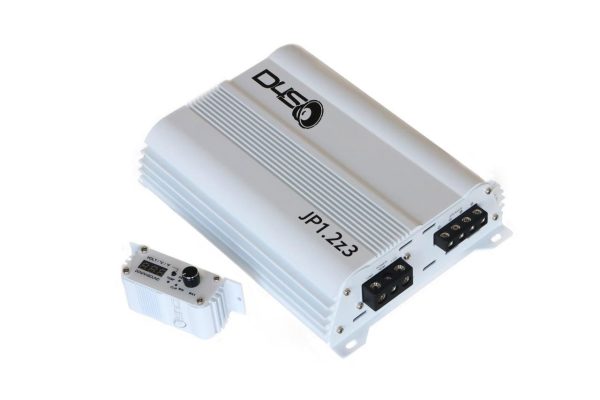

Down4Sound JP1.2Z3 1200W RMS Any-Ohm Monoblock Amplifier

PRODUCT DESCRIPTION

The Down4Sound JP1.2Z3 is a versatile monoblock designed to deliver its 1200W RMS rating across 1-ohm, 2-ohm and 4-ohm loads at 14.4V. That wide impedance flexibility makes it especially useful when system configuration may change or when matching unusual subwoofer wiring requirements.

POWER RATINGS

• 1200W RMS x 1 at 1 ohm, 14.4V
• 1200W RMS x 1 at 2 ohms, 14.4V
• 1200W RMS x 1 at 4 ohms, 14.4V
• 2400W RMS strapped

FEATURES & SPECS

• Frequency response: 11Hz-239Hz
• Low-pass filter: 35Hz-250Hz
• Subsonic filter: 10Hz-50Hz
• Bass boost: 0-9dB
• Input sensitivity: 0.2V-6V
• Signal-to-noise ratio: 92dB
• Operating voltage: 9V-15.5V
• Recommended fuse rating: 190A single / 380A strapped
• 4-gauge power/ground terminals
• Approx. dimensions: 9.05 x 7.48 x 2.24 in
