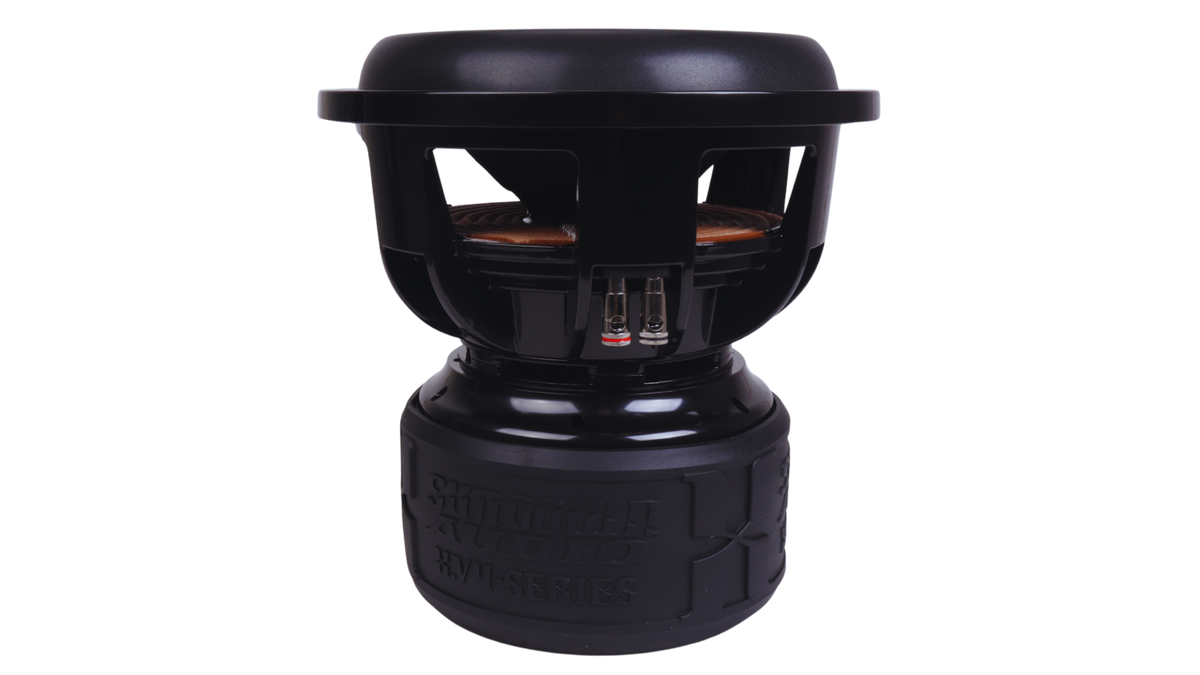

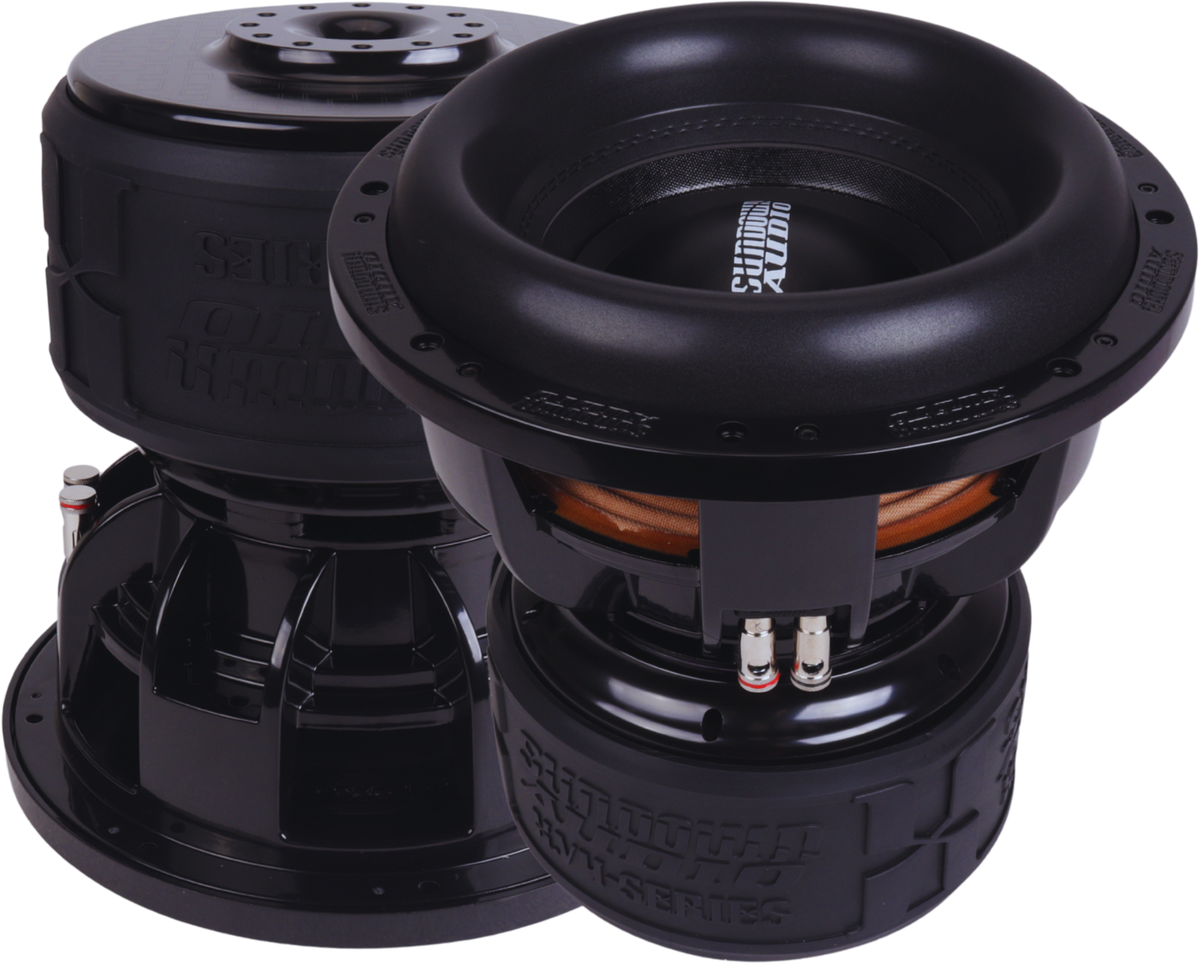

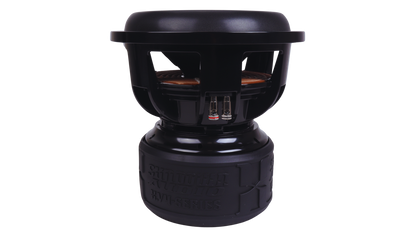

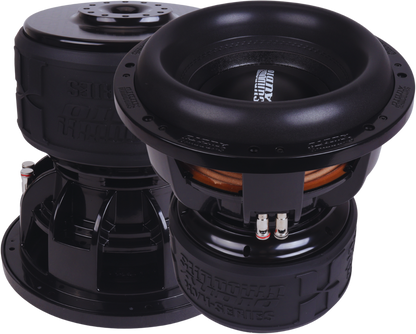

Sundown Audio X-Series XV4 12" 3000W Subwoofer

PRODUCT DESCRIPTION

The Sundown Audio X-Series XV4 12-inch subwoofer is engineered for extreme-output systems where excursion, motor strength and thermal capacity matter. The XV4 platform is built around a large high-efficiency motor, heavy-duty suspension and Sundown's high-excursion X-Series architecture to deliver deep, controlled bass at serious power levels.

Available in dual 1-ohm and dual 2-ohm configurations, the XV4 12 is optimized for ported enclosures and is aimed at high-power daily systems, demo vehicles and competition-oriented builds.

FEATURES

• Manufacturer-marketed 3000W-class X-Series platform
• Dual 1-ohm or dual 2-ohm voice coils
• 30 mm Xmax
• Heavy-duty high-efficiency motor structure
• Reinforced cone and high-excursion suspension
• Designed for high-power daily and SPL applications

TECHNICAL SPECIFICATIONS

• Overall diameter: 12.81 in
• Cutout diameter: 11.09 in
• Motor diameter: 9.25 in
• Mounting depth: 11.75 in
• Driver displacement: 0.23 cu ft
• Xmax: 30 mm

ENCLOSURE RECOMMENDATIONS

• Sealed: not recommended
• Ported: 2.5 cu ft
• Recommended port tuning: 32 Hz
• Recommended port area: 40 sq in
• 4th-order sealed side: 1.0 cu ft
• 4th-order ported side: 3.0 cu ft

Rating note: Sundown currently markets the XV4 12 as a 3000W RMS platform; published parameter tables on the manufacturer's current page may show updated test ratings during the company's ongoing packaging/rating transition.
