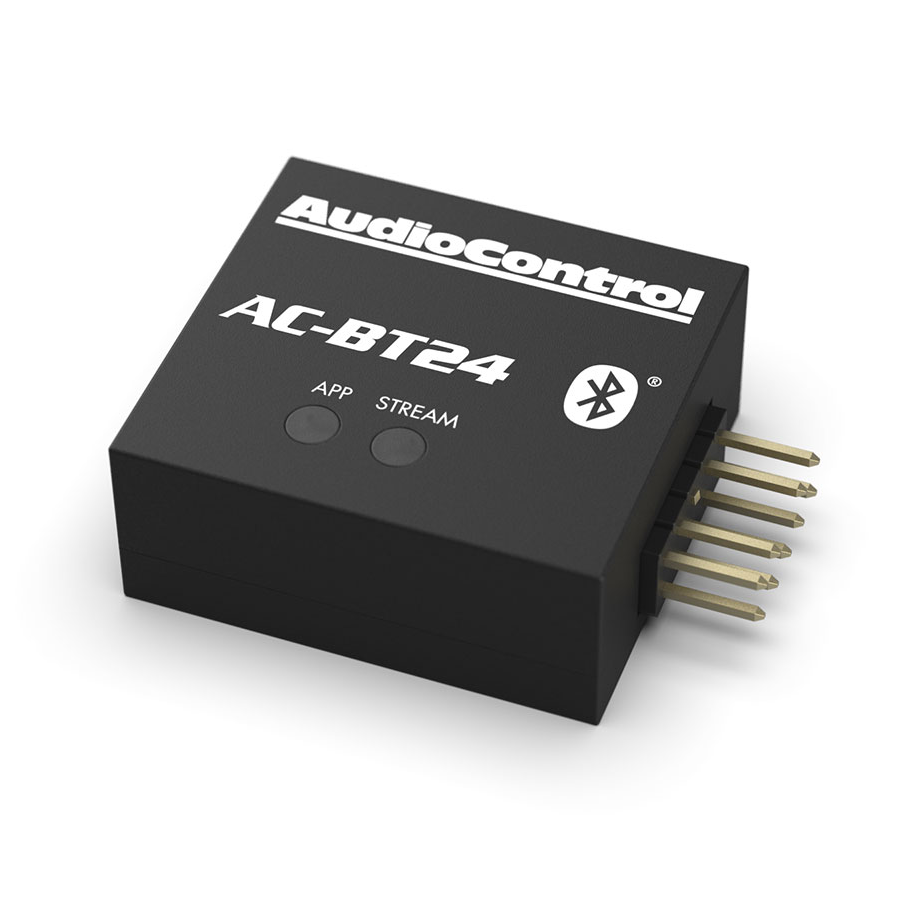

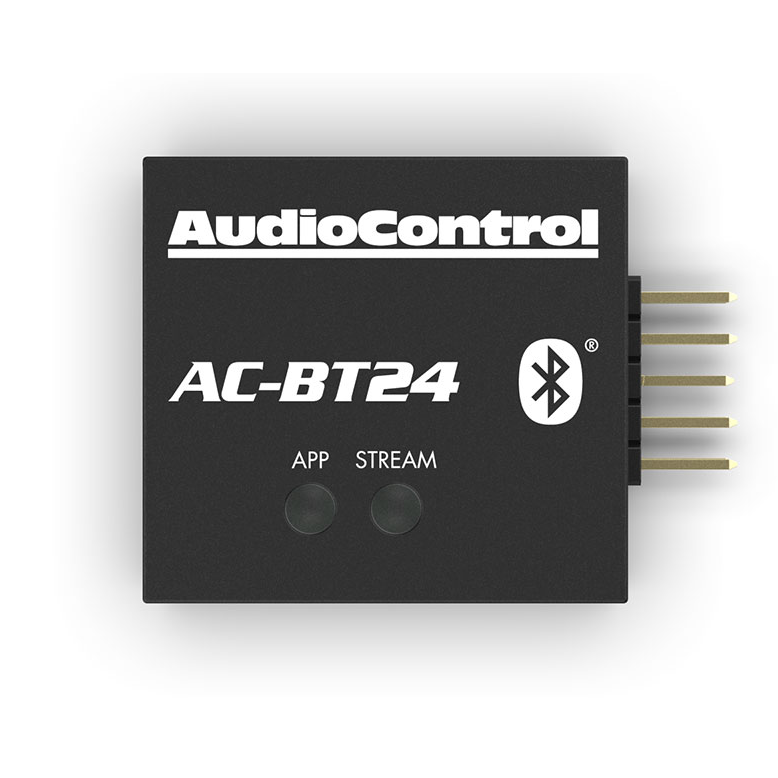

AudioControl AC-BT24 Bluetooth Streamer & Programmer

AudioControl AC-BT24 Bluetooth Streamer & Programmer

$216.00
$216.00
Sale Sold out
Shipping calculated at checkout.

The AC-BT24 enables high-definition Bluetooth® audio streaming (aptX HD support) and programming for AudioControl DSP products featuring the Option Port. Stream hires audio directly to DM Series DSPs, D Series amplifiers, or connect via Bluetooth and the DM Smart DSP app for initial programming and setup. The AC-BT24 also allows for wireless control of the AudioControl DM-RTA via the DM-RTA app for iOS and Android.

Features

  • High Definition Low-Latency Audio Streaming
  • aptXTM HD Support
  • 24-bit / 48 kHz Audio Streaming from Devices with aptX Codec
  • Wireless DSP Programming via DM Smart DSP™ app for iOS/Android
  • Simultaneous Audio Streaming and DSP Programming
  • Compatible with: DM-810, DM-608, D-6.1200, D-4.800, D-5.1300, DM-RTA

Specifications

Bluetooth

  • Version: 4.2
  • aptX HD Compatible
  • UART Interface

Output

  • Dual Differential Class AB Output Stage

    Performance

    • Signal to Noise Ratio: 96 dB
    • Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
    • Operating Range: 10+ meters (depending on environment)

    General

    • Power Requirements: Provided by Option Port

    Weights & Dimensions

    • Dimensions: 1.4”L x 1.0”W x 0.5”H
    • Weight: 0.3 oz (9 g)
    View full details
