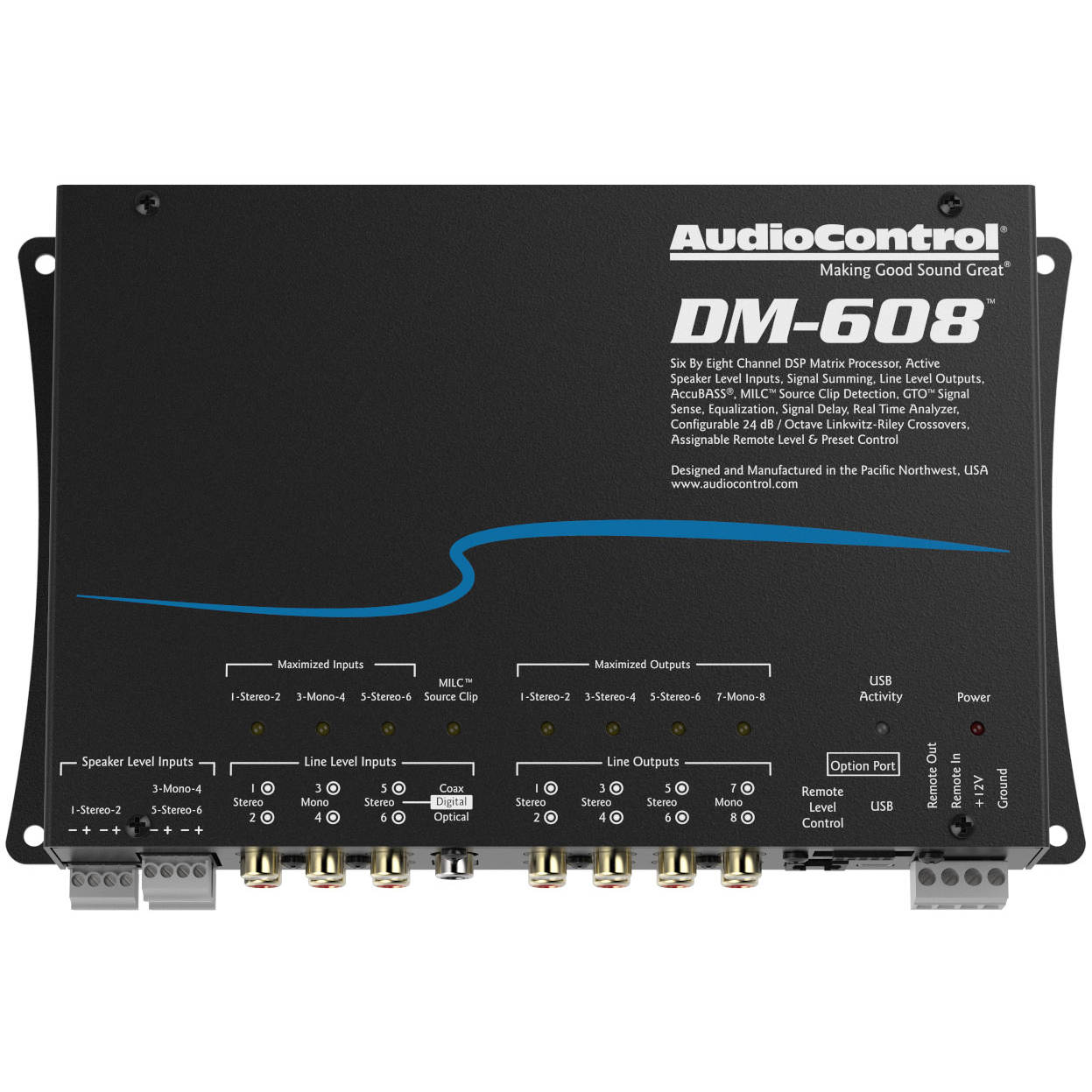

AudioControl DM-608 DSP
AudioControl DM-608 DSP
Couldn't load pickup availability
The powerful DM-608 digital signal processor allows users to truly optimize the performance of their audio system, regardless of whether they are using a factory or aftermarket source, and to truly achieve the goal of “Making Good Sound Great”.
These highly versatile Digital Signal processors are equipped with key features, such as active speaker-level inputs, line-level and digital audio inputs, providing up to 8 channels of output. AudioControl’s “smart user” interface contains the power of AudioControl processing through a flexible PC interface packed full of features in a simple lay out. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay and phase correction, plus AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM as well as integrated input and output RTA’s.
The built-in Option Port on the DM-608 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers and interface solutions.
Specifications
Inputs
- Preamp Input Channels: 6
- Digital Inputs: 1 x Toslink and Coax
- Input Impedance Preamp / Speaker-level: 20 kΩ / 7 kΩ
Outputs
- Preamp Outputs Channels: 8
- Maximum Output Level: 10 Vrms
- Output Impedance: 150 Ω
Performance
- Total Harmonic Distortion: 0.01%
- Frequency Response: 20 Hz to 24 kHz
- Crossover Frequency: variable
- Crossover Type: 12 and 24 dB/octave Linkwitz-Riley
Control
- 12 VDC Remote In
- 12 VDC Remote Out (always active when the unit is on)
General
- Power Supply: High Headroom PWM Switching
- Current Draw: 1A
- Recommended Fuse Rating: 3A
Weights & Dimensions
- Dimensions: 9.4”W x 5.7”D x 1.6”H
- Weight: 2.4lbs (1.1kg)
