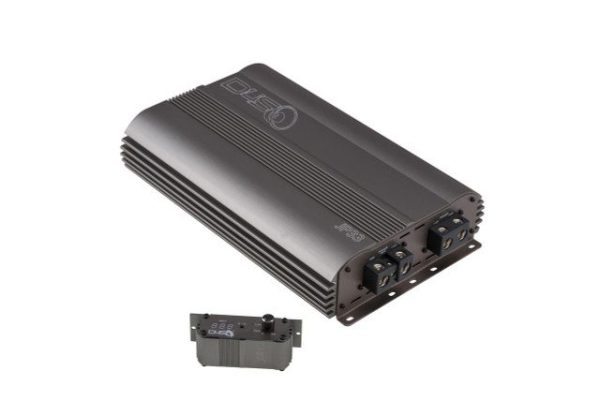

Down4Sound JP33 3300W RMS Monoblock Amplifier

PRODUCT DESCRIPTION

The Down4Sound JP33 is a 3300W-class monoblock built for high-output subwoofer systems. Dual 0-gauge power inputs, active cooling, strapping capability and broad low-frequency controls make it a strong choice for large daily or demo builds with upgraded electrical systems.

POWER RATINGS

• 3300W RMS x 1 at 1 ohm, 14.4V
• 2300W RMS x 1 at 2 ohms, 14.4V
• 1200W RMS x 1 at 4 ohms, 14.4V

FEATURES & SPECS

• Frequency response: 14Hz-260Hz
• Subsonic filter: 10Hz-50Hz
• Low-pass filter: 35Hz-250Hz
• Phase control: 0-180 degrees
• Input sensitivity: 0.2V-6V
• Signal-to-noise ratio: 96dB
• Recommended total fusing: 350A
• Dual 0-gauge power inputs
• Bluetooth remote with voltage, temperature and clipping indication
• Approx. dimensions: 13.8 x 9.37 x 2.63 in

ELECTRICAL REQUIREMENTS

This amplifier requires a properly upgraded vehicle electrical system, including adequate alternator output, reserve battery capacity, power/ground wiring and fusing.
