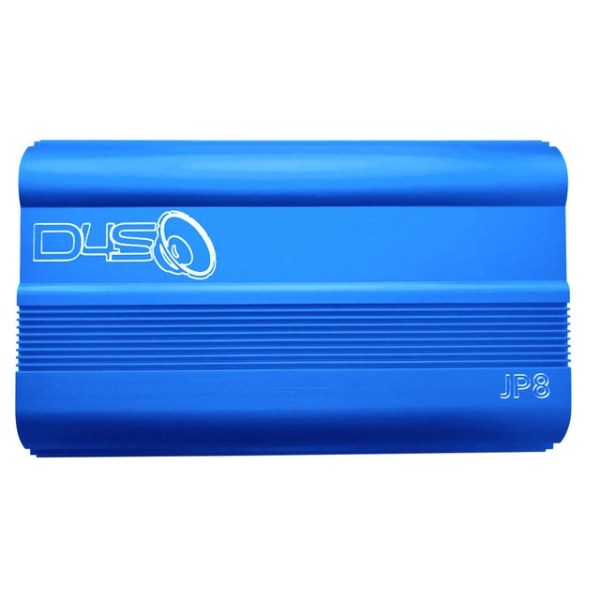

Down4Sound JP8 800W+ RMS Monoblock Amplifier

PRODUCT DESCRIPTION

The Down4Sound JP8 is a compact Class D monoblock built for daily subwoofer systems that need substantial power without the footprint of a larger amplifier. It includes active fan cooling, strapping capability and a remote bass control with voltage and temperature monitoring.

POWER RATINGS

• 850W RMS x 1 at 1 ohm, 14.4V
• 700W RMS x 1 at 1 ohm, 12V
• 650W RMS x 1 at 2 ohms, 14.4V
• 500W RMS x 1 at 2 ohms, 12V
• 490W RMS x 1 at 4 ohms, 12V
• 2300W RMS linked at 2 ohms, 14.4V

FEATURES & SPECS

• Frequency response: 10Hz-270Hz
• Low-pass filter: 35Hz-250Hz
• Subsonic filter: 10Hz-50Hz
• Bass boost: 0-9dB
• Input sensitivity: 0.2V-6V
• Signal-to-noise ratio: 97dB
• Single amplifier fuse rating: 120A
• Strapped fuse rating: 220A
• 4-gauge power input and 8-gauge speaker output
• Approx. dimensions: 11.81 x 7.4 x 2.24 in
