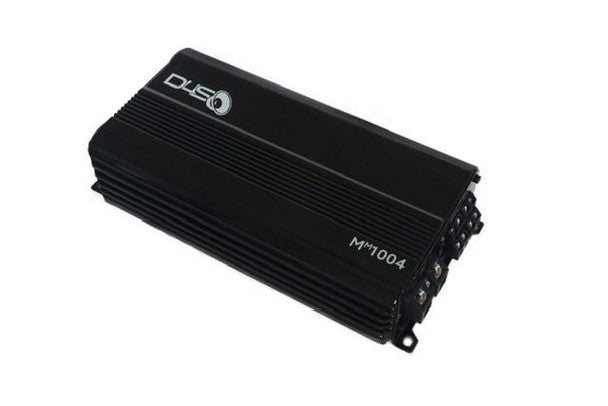

Down4Sound MM1004 Mini Maxx 700W RMS 4-Channel Amplifier

PRODUCT DESCRIPTION

The Down4Sound MM1004 Mini Maxx is a compact full-range 4-channel amplifier for mids, highs and small-space installations. Its x1/x10 crossover controls support conventional high-pass operation as well as band-pass configurations for more advanced front-stage tuning.

POWER RATINGS

• 100W RMS x 4 at 4 ohms
• 150W RMS x 4 at 2 ohms
• Approx. 300-350W RMS x 2 bridged at 4 ohms

FEATURES & SPECS

• Frequency response: 10Hz-23.8kHz
• Signal-to-noise ratio: 93dB
• Damping factor: 100
• Input sensitivity: 0.2V-6V
• HPF: 20Hz-800Hz with x10 multiplier
• LPF: 50Hz-800Hz with x10 multiplier
• Band-pass capable
• Clipping indicator
• Working voltage: 9V-15.5V
• 4-gauge power/ground terminals
• Approx. dimensions: 8.66 x 4.87 x 2.13 in
