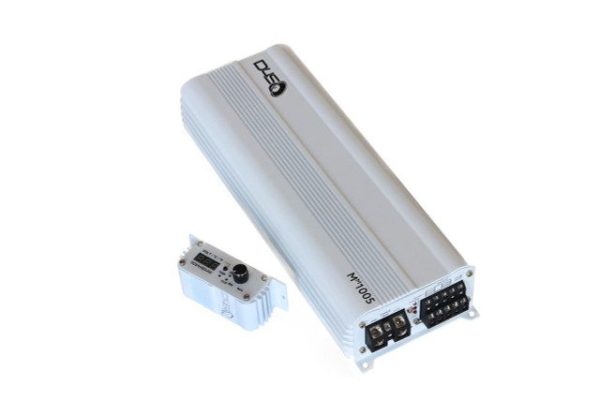

Down4Sound MM1005 Mini Maxx 1100W RMS 5-Channel Amplifier

PRODUCT DESCRIPTION

The Down4Sound MM1005 Mini Maxx packs a complete 5-channel system amplifier into a compact chassis. Four full-range channels handle mids and highs while the dedicated fifth channel powers a subwoofer, making it a clean one-amplifier solution for space-conscious installations.

POWER RATINGS

• CH5: 500W RMS x 1 at 1 ohm
• 120W RMS x 4 + 400W RMS x 1 at 2 ohms
• 80W RMS x 4 + 250W RMS x 1 at 4 ohms
• 260W RMS x 2 bridged + 250W RMS x 1 at 4 ohms

FEATURES & SPECS

• Full-range digital 5-channel design
• Band-pass capable CH3/CH4 crossovers
• Variable subsonic and low-pass controls for CH5
• Remote bass control with voltage and temperature display
• Input sensitivity: 0.2V-6V
• Signal-to-noise ratio: greater than 92dB
• Recommended fuse rating: 80A
• 4-gauge power/ground terminals
• Approx. dimensions: 12.20 x 4.87 x 2.13 in
