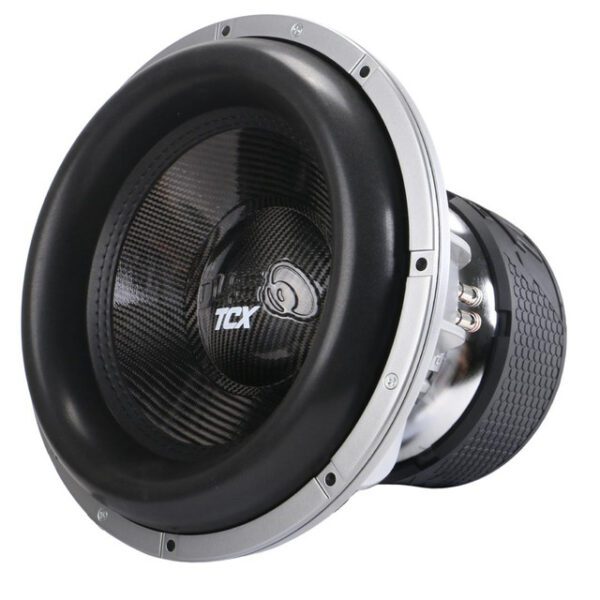

Down4Sound TCX 15" 2700W RMS DVC Subwoofer

PRODUCT DESCRIPTION

The Down4Sound TCX 15 is a high-output 15-inch subwoofer engineered for demanding street, demo and high-power daily systems. A rigid carbon-fiber cone, oversized five-stack Y35 ferrite motor and heavily vented 3-inch 8-layer flat-aluminum voice coil are designed to combine high excursion with strong thermal control.

KEY FEATURES

• 2700W RMS power handling
• 3-inch 8-layer flat aluminum voice coil
• Dual 1-ohm or dual 2-ohm configurations
• Carbon-fiber cone
• Five-stack Y35 ferrite motor
• Approx. 35 mm one-way Xmax
• Vented backplate, gap and dual flared pole vents
• Approx. cutout: 14.05 in / 357 mm
• Approx. mounting depth: 10.0 in / 254 mm

THIELE/SMALL DATA

• Fs: 28.9 Hz
• Qts: 0.46
• Vas: 37.7 L
• Sensitivity: 84.3 dB @ 1W

RECOMMENDED ENCLOSURE

Ported: approximately 3.25-4.0 cu ft net, tuned around 30-32 Hz. Final enclosure design should account for vehicle response, desired bandwidth and actual displacement.
