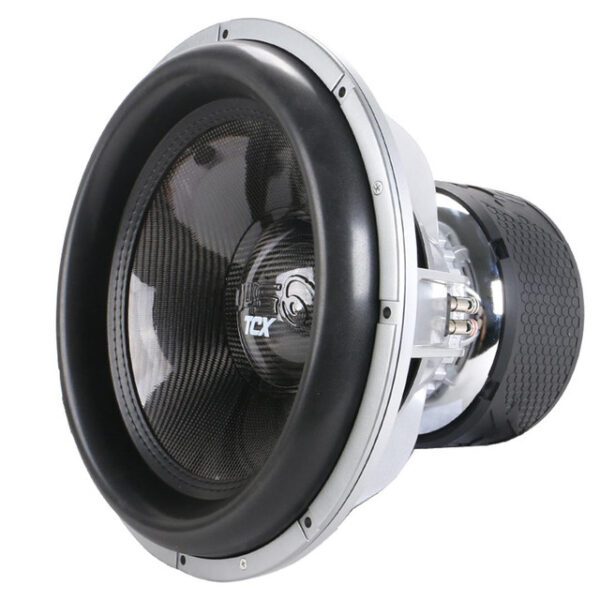

Down4Sound TCX 18" 2700W RMS DVC Subwoofer

PRODUCT DESCRIPTION

The Down4Sound TCX 18 is built for high-output low-frequency systems that need substantial cone area, excursion and thermal capacity. It uses a carbon-fiber cone, triple-spider suspension, five-stack Y35 ferrite motor and a fully vented 3-inch 8-layer flat-aluminum voice coil assembly.

KEY FEATURES

• 2700W RMS power handling
• 3-inch 8-layer flat aluminum voice coil
• Dual 1-ohm or dual 2-ohm configurations
• Carbon-fiber cone
• Triple-spider suspension
• Approx. 36 mm one-way Xmax
• Fully vented motor and backplate
• Approx. cutout: 16.93 in / 430 mm
• Approx. mounting depth: 14.53 in / 369 mm

THIELE/SMALL DATA

• Fs: 30.2 Hz
• Qts: 0.521
• Vas: 24.9 L
• Sensitivity: 83.9 dB

RECOMMENDED ENCLOSURE

Ported: approximately 5.5-6.5 cu ft net, tuned around 30 Hz. Final enclosure volume and port area should be matched to the installation, power level and intended bandwidth.
