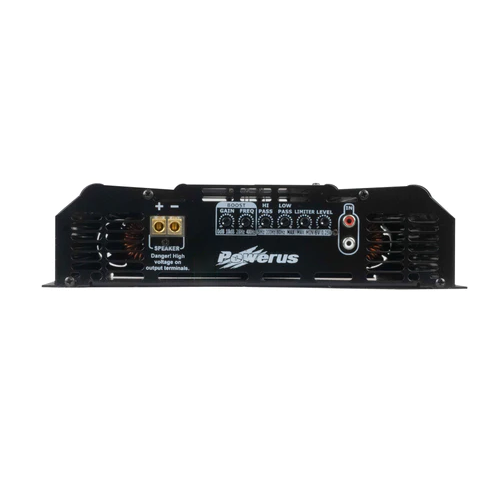

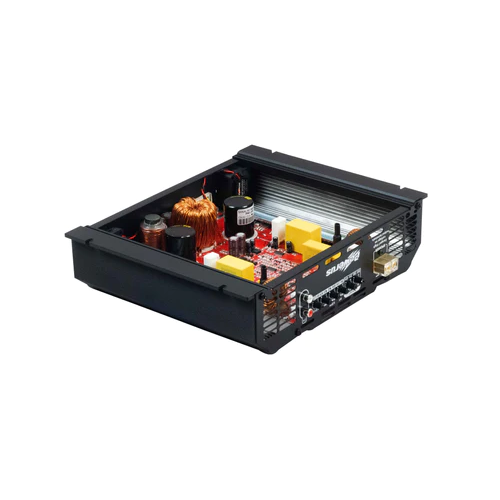

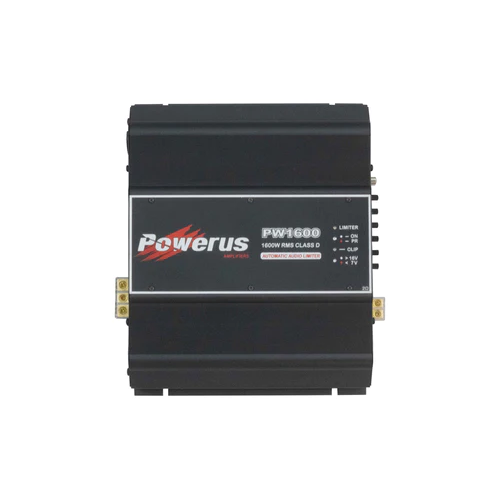

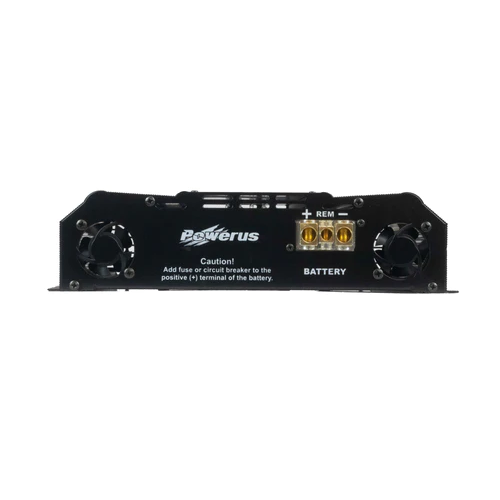

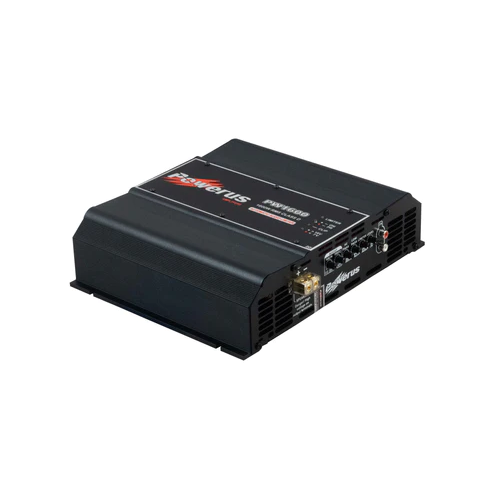

Powerus PW1600 Amplifier

Powerus PW1600 Amplifier

Regular price $503.00
Regular price $560.00 Sale price $503.00
Sale Sold out
Shipping calculated at checkout.
Impedance

Introducing the Powerus PW1600 amplifier. Setting a new standard in consumer technology from Brazil. These amplifiers boast versatile impedance options and feature advanced protection circuits to safeguard against installation errors. Built with precision and durability, the Powerus PW1600 ensures high-quality construction with robust components, delivering a substantial declared power output with minimal distortion (0.1% THD) at a tested RMS wattage of 40Hz. Additionally, Powerus amplifiers come equipped with exclusive functions like LIMITER for an enhanced audio experience. Elevate your sound system with the cutting-edge technology of Powerus. Now available at Intricate Audio!

TECHNICAL SPECIFICATIONS

Supply Voltage / Power Supply 7Vdc ~ 16V dc
Resting Consumption / Consumption at Rest 1.2A
Musical Consumption / Music Consumption 75A
Cons. Max. Sinusoidal Signal 40Hz / Max. Consump. in Sinusoidal Signal 40Hz 207A
Efficiency 75%
Input Impedance 22K Ohms
Input Sensitivity 0.25V ~ 6V
Total Harmonic Distortion / THD 0.1%
SNR (Signal-to-Noise Ratio) > 90dB
Damping Factor 40Hz (12.6V 2 Ω) > 1000
Frequency Response 5Hz ~ 45KHz (-3dB)
Low Pass Crossover 80Hz ~ 45KHz
High Pass Crossover 5Hz ~ 200Hz
Boost Gain 0dB ~ 18dB
Variable Boost Frequency 28Hz ~ 400Hz
Variable Threshold Limiter Exclusive
Dimensions (AxHxL) mm 70x280x220
Weight 3.25Kg



POWER OUTPUT
