SoundQubed Q1-10000 18v Q-Series Mono Amplifier
SoundQubed Q1-10000 18v Q-Series Mono Amplifier
Feel the Earth Shake and Windows Rattle
With the SoundQubed Q Series Q1-10000 10,000-watt amplifier! This powerhouse packs a punch in a compact 25.5" casing with the following features:
- Massive 10,000+ watt output
- 3 power and ground inputs
- Silk screen logo etched end caps

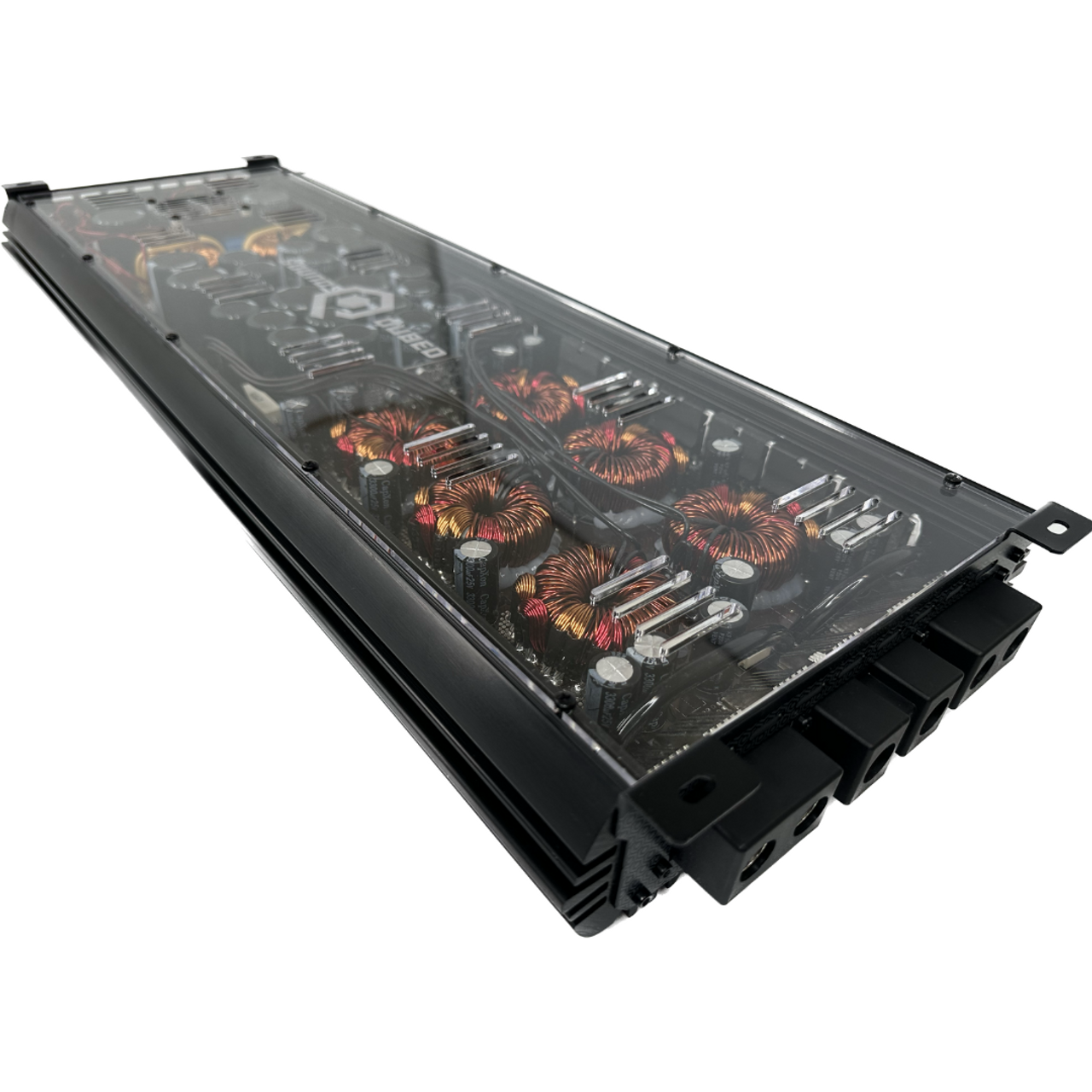

- Factory 1/4" plexi backing
- Master/slave connectivity to link 2 amps
- Beefy 16V capability pushing out 15,000+ watts
- Premium Tiffany RCA inputs
- 1 Ohm stable
- Variable low pass filter
The SoundQubed Q1-10000 combines extreme power and smart design. Experience room-shaking bass with every turn of the knob. This amplifier brings serious power and style in one clean, black, and machined casing.
Built for audio enthusiasts and professionals, the Q1-10000 takes your sound system to the next level. The smart and compact design allows you to optimize power and space in any setup. This amplifier requires several electrical upgrades in your setup to ensure it has the appropriate power to produce its rated output. A high-output alternator, additional reserve bank, and big three are a MUST!

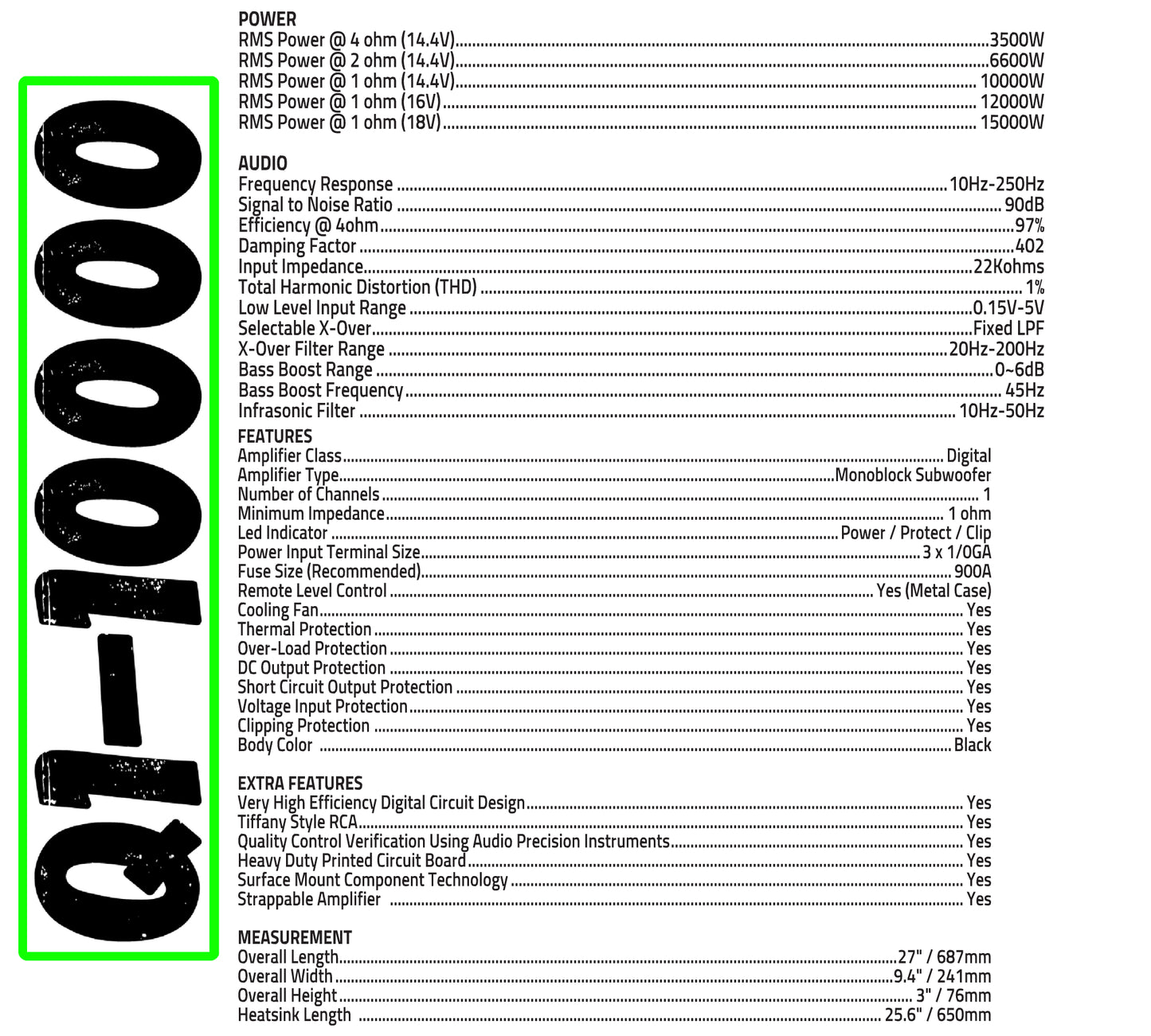

POWER | |
---|---|
RMS Power @ 4 ohm (14.4V) | 3500W |
RMS Power @ 2 ohm (14.4V) | 6600W |
RMS Power @ 1 ohm (14.4V) | 10000W |
RMS Power @ 1 ohm (16V) | 12000W |
RMS Power @ 1 ohm (18V) | 15000W |
AUDIO | |
Frequency Response | 10Hz-250Hz |
Signal to Noise Ratio | 90dB |
Efficiency @ 4ohm | 97% |
Damping Factor | 402 |
Input Impedance | 22Kohms |
Total Harmonic Distortion (THD) | 1% |
Low Level Input Range | 0.15V-5V |
Selectable X-Over | Fixed LPF |
X-Over Filter Range | 20Hz-200Hz |
Bass Boost Range | 0-6dB |
Bass Boost Frequency | 45Hz |
Infrasonic Filter | 10Hz-50Hz |
FEATURES | |
Amplifier Class | Digital |
Amplifier Type | Monoblock Subwoofer |
Number of Channels | 1 |
Minimum Impedance | 1 ohm |
Led Indicator | Power / Protect / Clip |
Power Input Terminal Size | 3 x 1/0GA |
Fuse Size (Recommended) | 900A |
Remote Level Control | Yes (Metal Case) |
Cooling Fan | Yes |
Thermal Protection | Yes |
Over-Load Protection | Yes |
DC Output Protection | Yes |
Short Circuit Output Protection | Yes |
Voltage Input Protection | Yes |
Clipping Protection | Yes |
Body Color | Black |
EXTRA FEATURES | |
Very High Efficiency Digital Circuit Design | Yes |
Tiffany Style RCA | Yes |
Quality Control Verification Using Audio Precision Instruments | Yes |
Heavy Duty Printed Circuit Board | Yes |
Surface Mount Component Technology | Yes |
Strappable Amplifier | Yes |
MEASUREMENT | |
Overall Length | 27" / 687mm |
Overall Width | 9.4" / 241mm |
Overall Height | 3" / 76mm |
Heatsink Length | 25.6" / 650mm |
