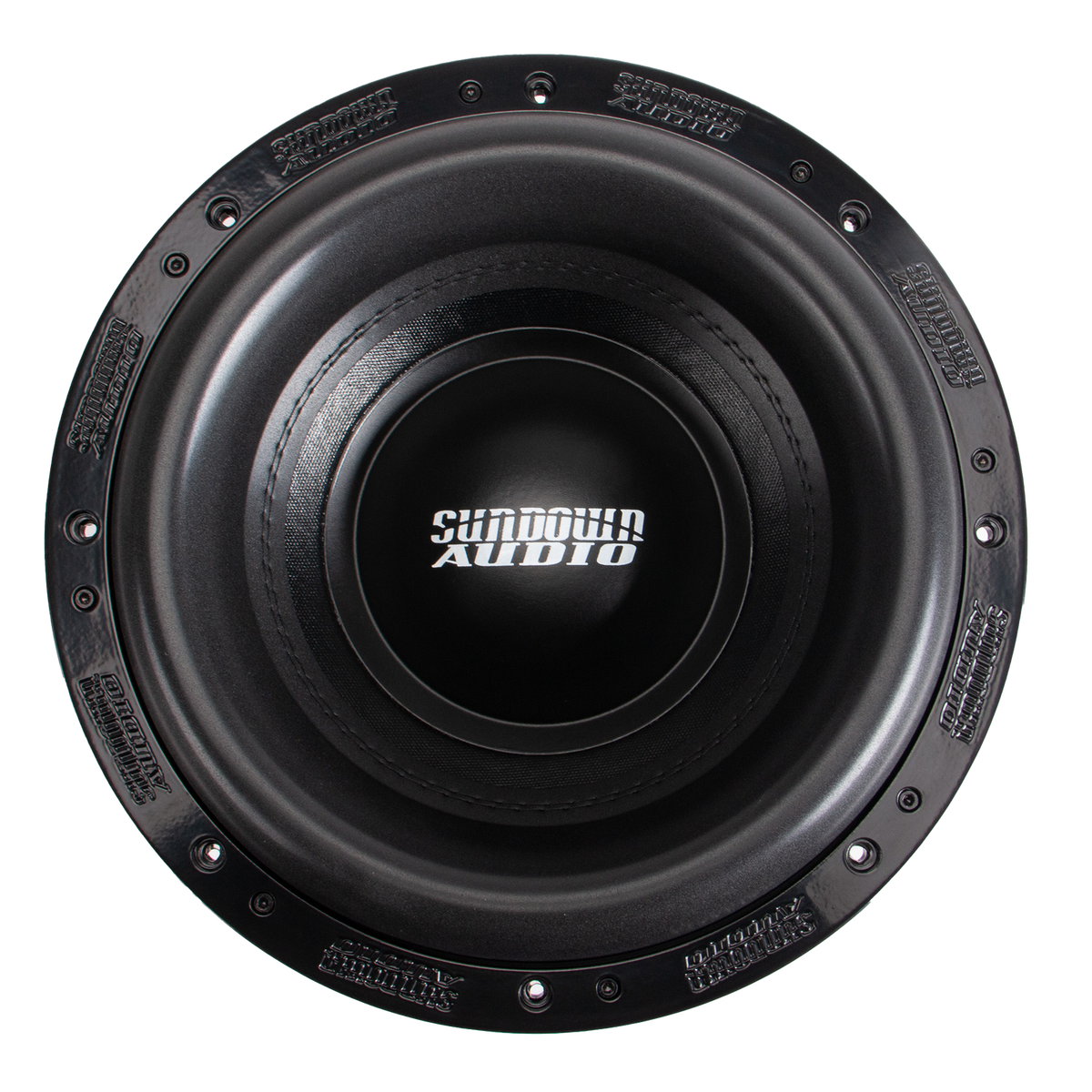

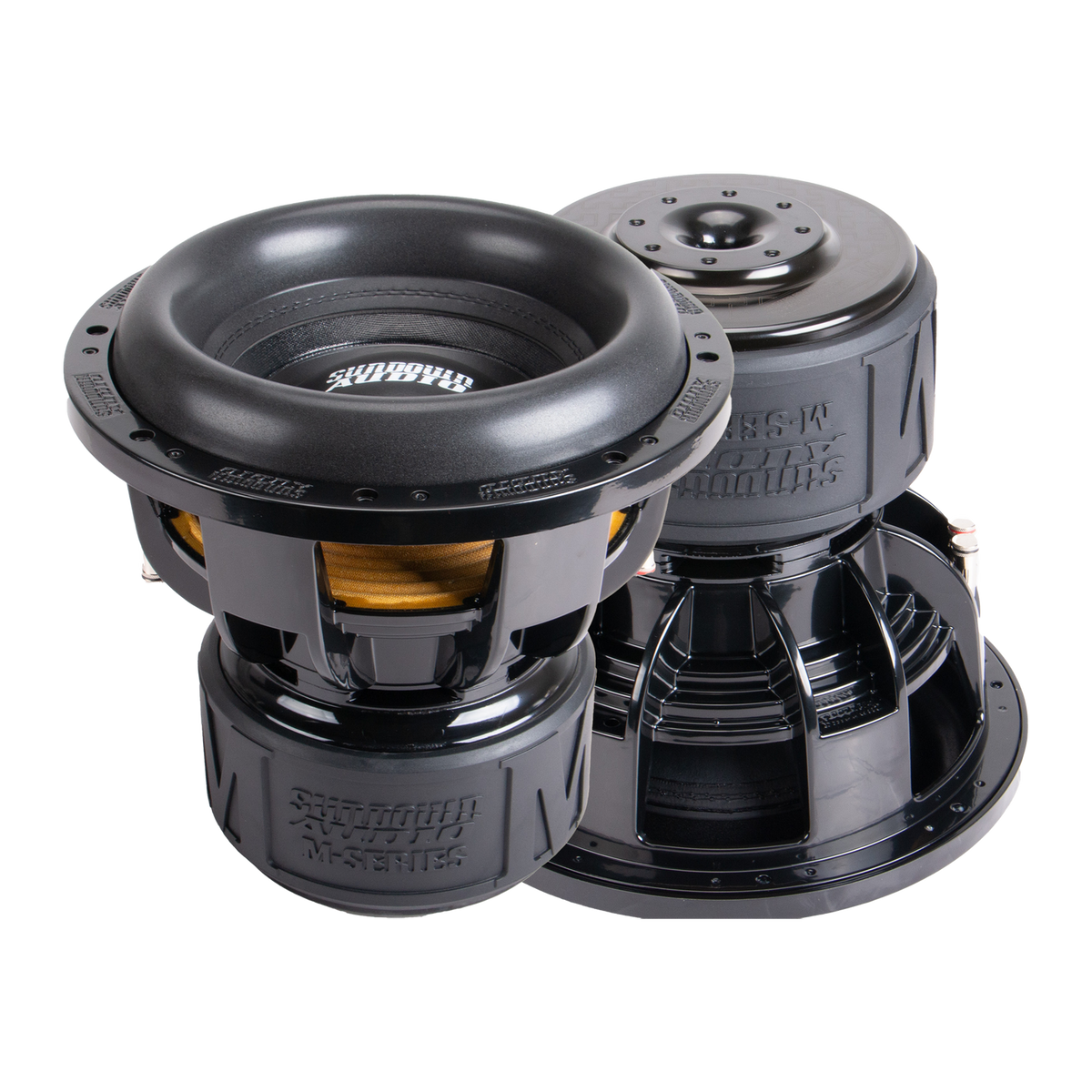

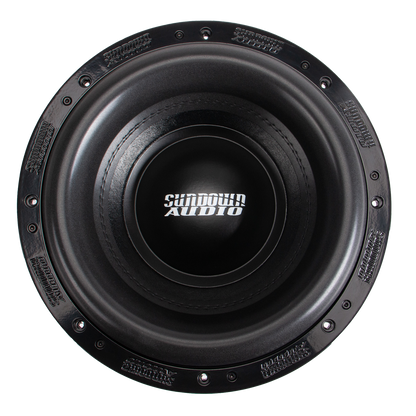

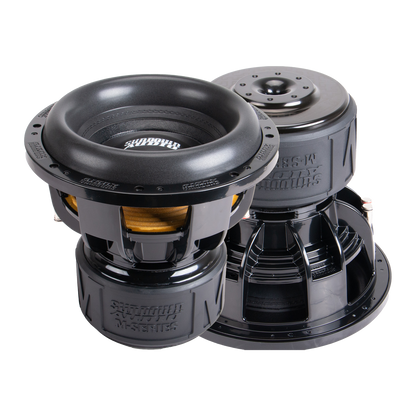

Sundown Audio M12 12" 2000W RMS Subwoofer

PRODUCT DESCRIPTION

The Sundown Audio M12 is a heavy-duty 12-inch subwoofer designed for high-output systems that still demand musical control. Positioned in Sundown's Mega-series platform, the M12 combines a large-excursion suspension, a quad-stack motor structure and a 3-inch four-layer aluminum voice coil to handle sustained power while maintaining strong low-frequency authority.

Available in dual 1-ohm and dual 2-ohm versions, the M12 is rated at 2000W RMS and is well suited to powerful daily systems, demo builds and SPL-oriented applications where substantial excursion and thermal capacity are required.

FEATURES

• 2000W RMS / 4000W peak power handling
• Dual 1-ohm or dual 2-ohm voice coils
• 3-inch four-layer round-wire aluminum voice coil
• Quad-stack ferrite motor structure
• Sundown Mega Roll surround and high-excursion frame
• Heavy-duty suspension engineered for large linear travel
• Black motor/backplate finish

TECHNICAL SPECIFICATIONS

• Xmax: 35 mm one way
• Xmech: approximately 59.5 mm one way
• Mounting depth: 10.88 in
• Outside diameter: 12.67 in
• Cutout diameter: 11.09 in

ENCLOSURE RECOMMENDATIONS

• Sealed: 2.0 cu ft
• Ported: 2.5 cu ft
• Recommended port tuning: 32 Hz
• Recommended port area: 40 sq in

Note: Enclosure recommendations are per subwoofer. Final enclosure design should be adjusted for the vehicle, amplifier power and target frequency response.
