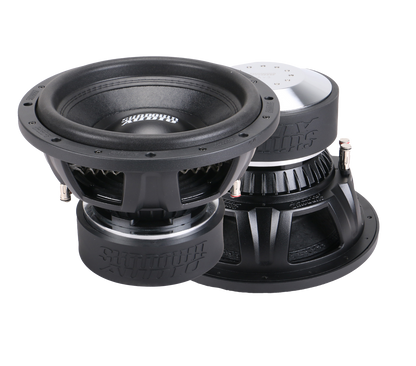

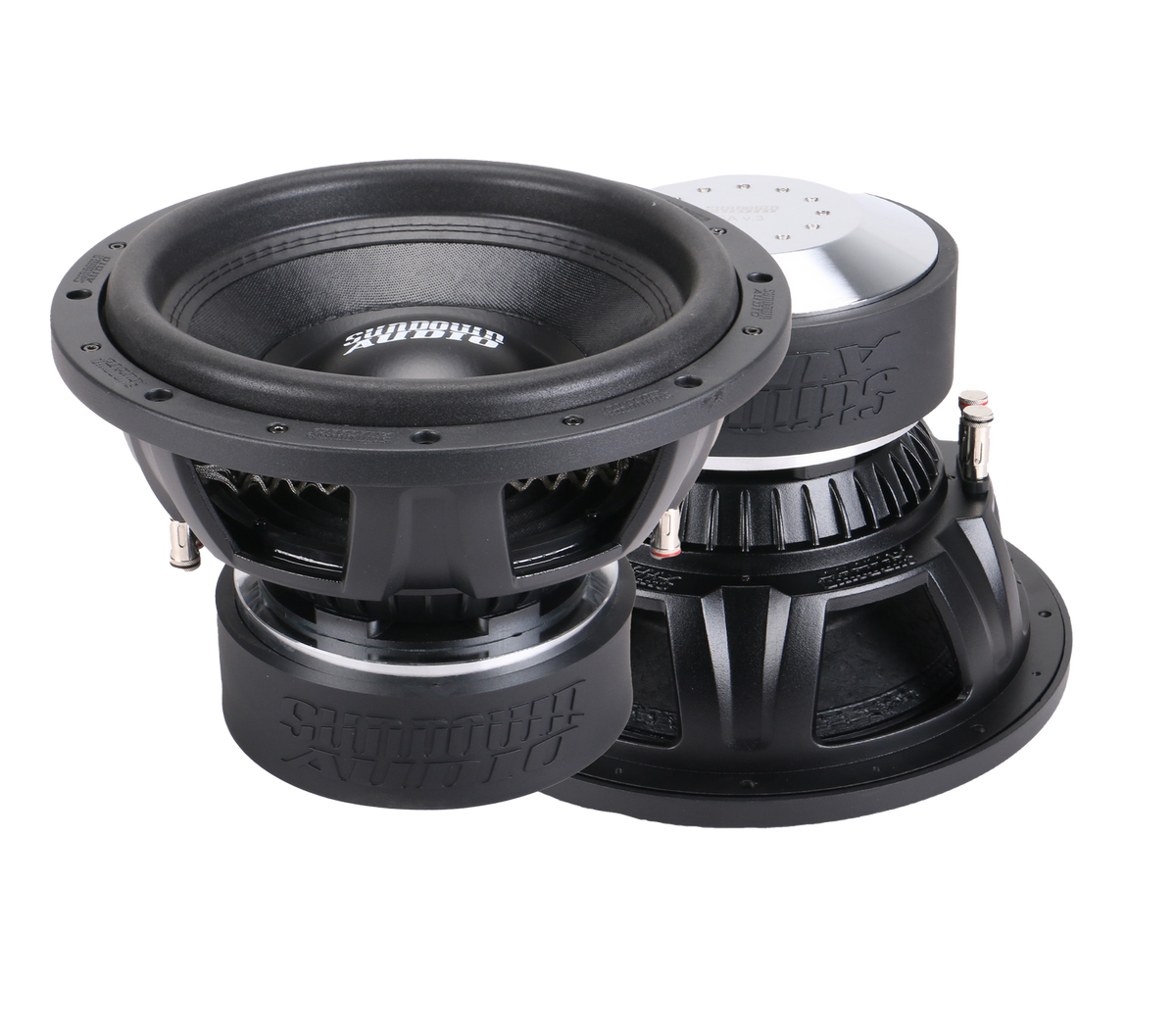

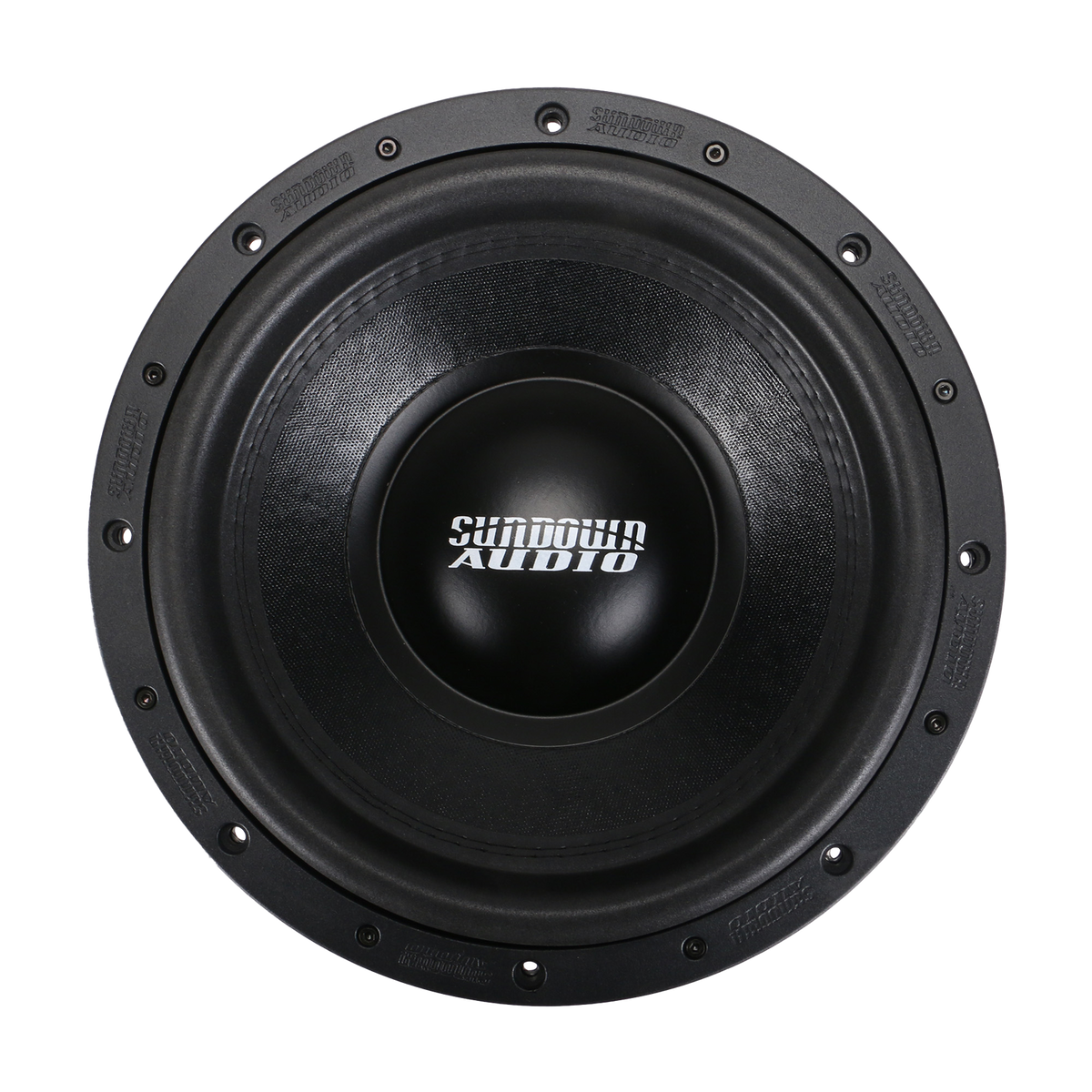

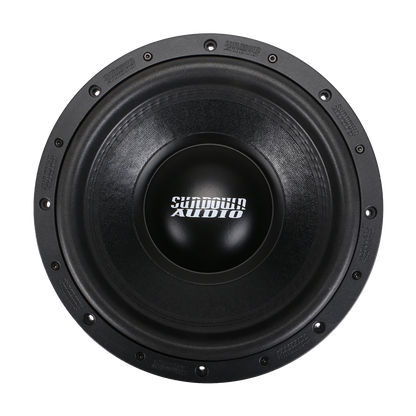

Sundown Audio SA v3 12" 1500W RMS Subwoofer

PRODUCT DESCRIPTION

The Sundown Audio SA v3 12-inch subwoofer is a high-output daily-driver woofer built for strong low-frequency extension, excellent mechanical control and long-term reliability. The third-generation SA platform uses a 2.75-inch aluminum voice-coil former, extensive motor venting and multiple Faraday rings to control heat and distortion while delivering clean output at high excursion.

Available in dual 2-ohm and dual 4-ohm configurations, the SA v3 12 is rated at 1500W RMS and works especially well in compact ported enclosures. It is an excellent choice for serious street systems that need strong musical bass without stepping into Sundown's larger competition-focused platforms.

FEATURES

• 1500W RMS / 3000W peak power handling
• Dual 2-ohm or dual 4-ohm voice coils
• 2.75-inch aluminum voice-coil former
• Vented magnetic gap and channeled solid pole-piece cooling
• Motor and pole-cap Faraday rings for smoother response and reduced distortion
• High-temperature copper voice-coil wire
• Spring-loaded terminals
• Double XL stitched tinsel leads

TECHNICAL SPECIFICATIONS

• Xmax: 22 mm one way
• Xmech: approximately 40 mm one way
• Mounting depth: 8.4 in
• Outside diameter: 12.84 in
• Cutout diameter: 11.2 in
• Driver displacement: approximately 0.18 cu ft

ENCLOSURE RECOMMENDATIONS

• Sealed: 1.0 cu ft
• Ported: 1.75 cu ft
• Recommended port tuning: 35 Hz
• Recommended port area: 26 sq in

Note: Enclosure recommendations are per subwoofer and are intended as a starting point. Final box volume and tuning should be matched to the vehicle, power level and desired response.
