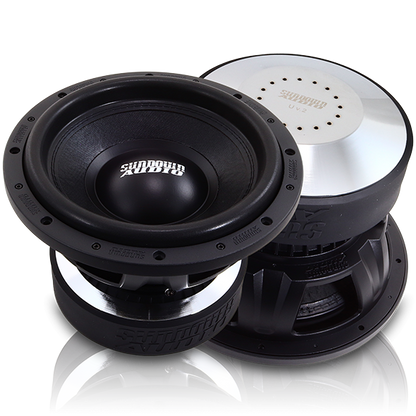

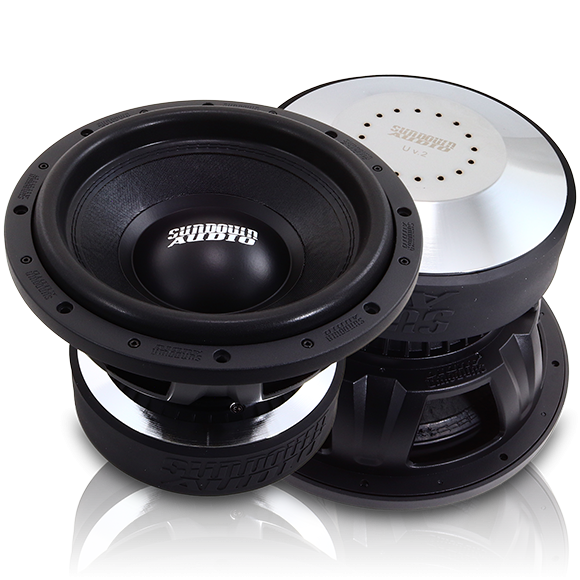

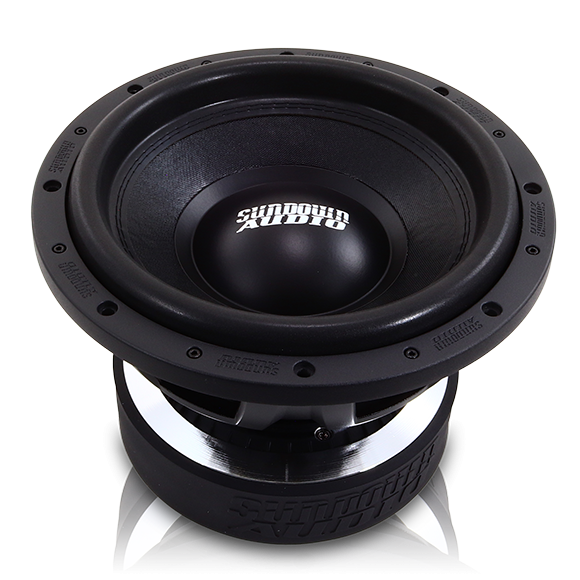

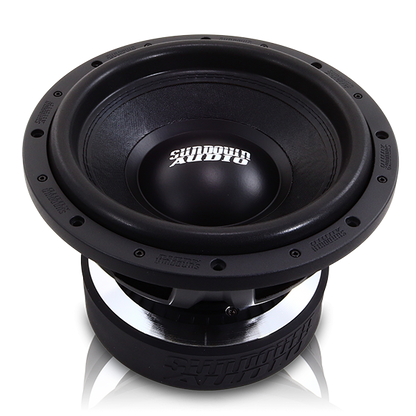

Sundown Audio U v2 12" 2000W RMS Subwoofer

PRODUCT DESCRIPTION

The Sundown Audio U v2 12-inch subwoofer is built for high-output daily and competition-oriented systems that need a strong balance of efficiency, excursion and thermal durability. Its double-stacked ferrite motor, substantial shorting rings and dedicated air-gap cooling help keep the 3-inch voice coil under control during extended high-power operation.

The U v2 uses Sundown's heavy custom cast frame with heat-dissipation ribs, a tall high-excursion cone and a robust suspension system. Dual 2-ohm and dual 4-ohm versions are available, making it easy to configure single- or multi-sub systems for common amplifier impedances.

FEATURES

• 2000W RMS / 4000W peak power handling
• Dual 2-ohm or dual 4-ohm configurations
• 3-inch aluminum voice-coil former
• Double-stacked ferrite motor
• Shorting rings for smoother response and thermal management
• Extended pole piece and direct air-gap venting
• Heavy cast frame with cooling ribs
• Spring terminals accepting large-gauge speaker wire

TECHNICAL SPECIFICATIONS

• Xmax: 30 mm one way
• Mounting depth: 8.43 in
• Outside diameter: 12.84 in
• Cutout diameter: 11.2 in
• Driver displacement: approximately 0.19 cu ft

ENCLOSURE RECOMMENDATIONS

• Sealed: 1.0 cu ft
• Ported: 2.0 cu ft
• Recommended port tuning: 35 Hz
• Recommended port area: 32 sq in
