Taramps

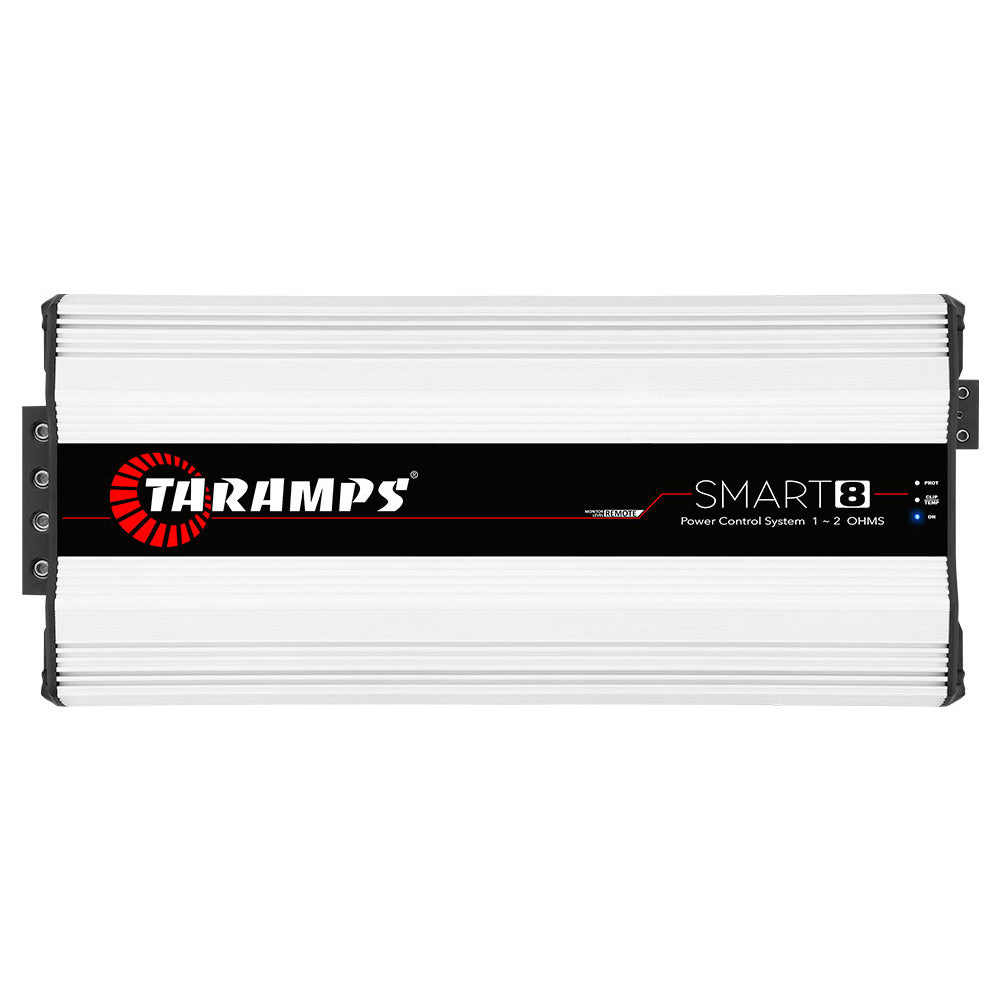

Taramps Smart 8 Amplifier
Taramps Smart 8 Amplifier
Regular price
$958.00
Regular price
$973.00
Sale price
$958.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
PRODUCT DESCRIPTION
The Smart 8 amplifier is another innovation by Taramps built for car audio systems. The exclusive Power Control System technology, now specific for subwoofers, ensures even more quality at low frequencies, delivering more security by monitoring the whole amplifier operation. It's a multi-impedance, single-channel amplifier that delivers 8000W RMS in any impedance between 1 and 2 ohms. It has a robust power input allowing cables up to 2/0 AWG (70mm²) x 2 and output for CLIP monitor. Available at Intricate Audio!
TECHNICAL SPECIFICATIONS
| OPERATION CLASS | D |
|---|---|
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | Output Power / @12.6VDC* 1 OHM ~ 2 OHMS: 8000W RMS 4 OHMS: 5000W RMS |
| INPUT SENSITIVITY | 0.22V ~ 4V |
| SIGNAL-TO-NOISE RATIO (SNR) | >90dB |
| FREQUENCY RESPONSE | 10Hz ~ 5KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 10Hz ~ 90Hz (-12dB/8ª) Variable |
| CROSSOVER LOW PASS (LPF) | 90Hz ~ 5KHz (-12dB/8ª) Variable |
| BASS BOOST | Freq.: 35Hz ~ 55Hz Boost: 0 ~ +10dB |
| EFFICIENCY | 82% @ 1 Ohm | 86% @ 2 Ohms |
| INPUT IMPEDANCE | 10K Ohms |
| PROTECTION SYSTEM | Output short-circuit, low/high supply voltage and Thermal protection |
| MINIMUM SUPPLY VOLTAGE | 9.5VDC |
| MAXIMUM SUPPLY VOLTAGE | 17VDC |
| CONSUMPTION AT REST | 8A |
| MAXIMUM MUSIC CONSUMPTION | 387A | 369A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 774A | 738A |
| DIMENSIONS (WXHXD) | 8.98" x 2.76" x 20.20" |
| WEIGHT | 14.52lb |
